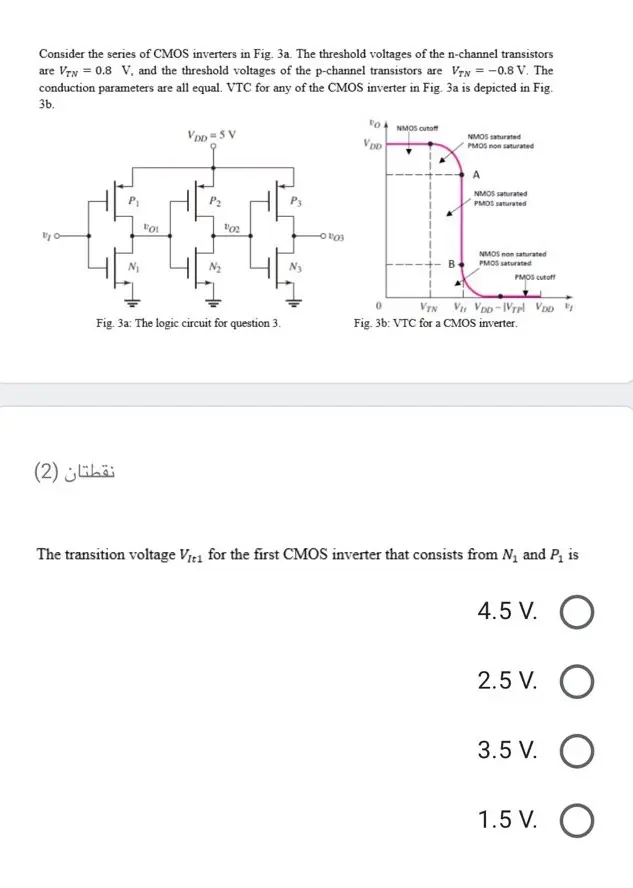

Consider the series of CMOS inverters in Fig. 3a. The threshold voltages of the n-channel transistors are VTN 0.8 V, and the threshold voltages of the p-channel transistors are VTN = -0.8 V. The conduction parameters are all equal. VTC for any of the CMOS inverter in Fig. 3a is depicted in Fig. 3b. VDD=5V FONMOS cutof VDD NMOS saturated PMOS non saturated P₂ N₂ 102 Fig. 3a: The logic circuit for question 3. نقطتان (2) P3 -01:03 B A NMOS saturated PMOS saturated NMOS non saturated PMOS saturated PMOS cutoff VIN VI VDD-VTP VDD Fig. 3b: VTC for a CMOS inverter. The transition voltage V1 for the first CMOS inverter that consists from N₁ and P₁ is 4.5 V. 2.5 V. О 3.5 V. 1.5 V. О
