السؤال
Transcribed Image Text:

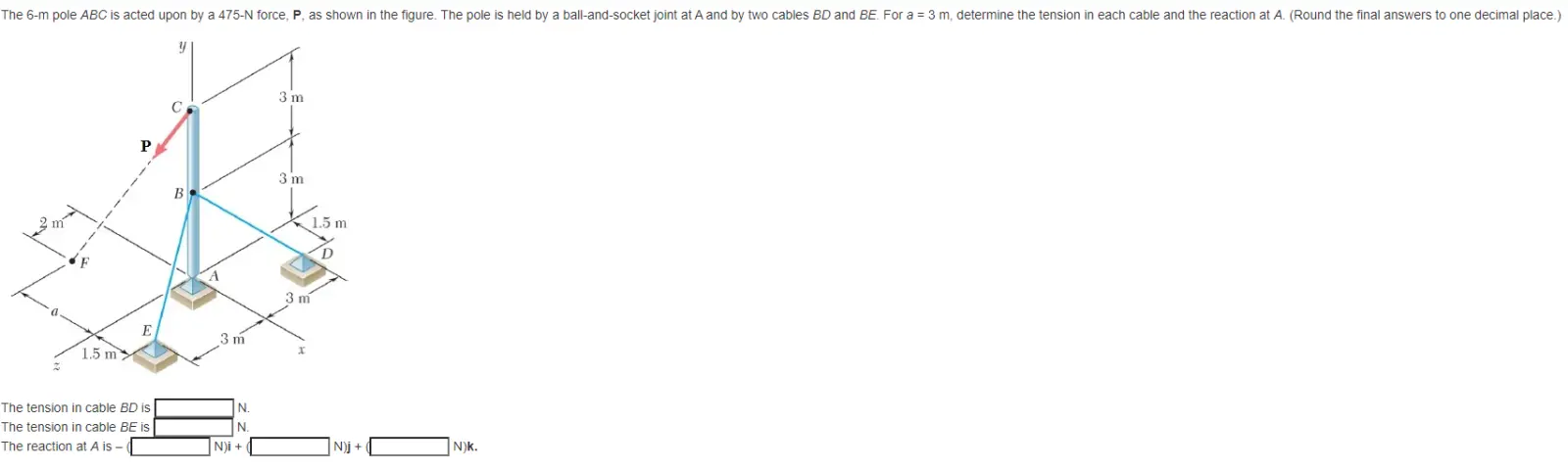

The 6-m pole ABC is acted upon by a 475-N force, P, as shown in the figure. The pole is held by a ball-and-socket joint at A and by two cables BD and BE. For a = 3 m, determine the tension in each cable and the reaction at A. (Round the final answers to one decimal place.)
y
m
F
1.5 m
P
C
3 m
B
3 m
E
3 m
3 m
1.5 m
The tension in cable BD is
N.
The tension in cable BE is
N.
The reaction at A is -
N)i +
N)j+
N)k.
