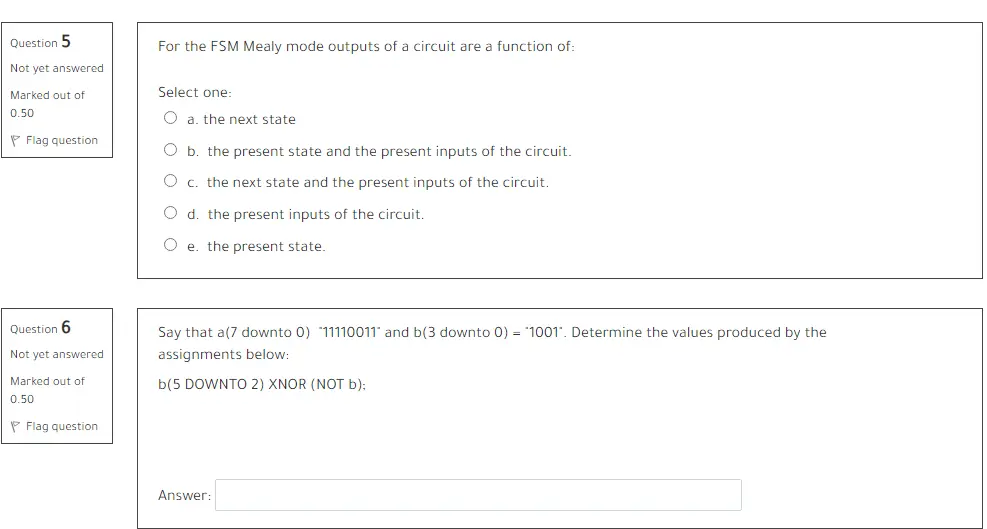

Question 5 Not yet answered Marked out of 0.50 Flag question For the FSM Mealy mode outputs of a circuit are a function of: Select one: O a. the next state O b. the present state and the present inputs of the circuit. c. the next state and the present inputs of the circuit. ◇ d. the present inputs of the circuit. O e. the present state. Question 6 Not yet answered Marked out of 0.50 Flag question Say that a(7 downto 0) 11110011" and b(3 downto 0) = "1001. Determine the values produced by the assignments below: b(5 DOWNTO 2) XNOR (NOT b); Answer:
