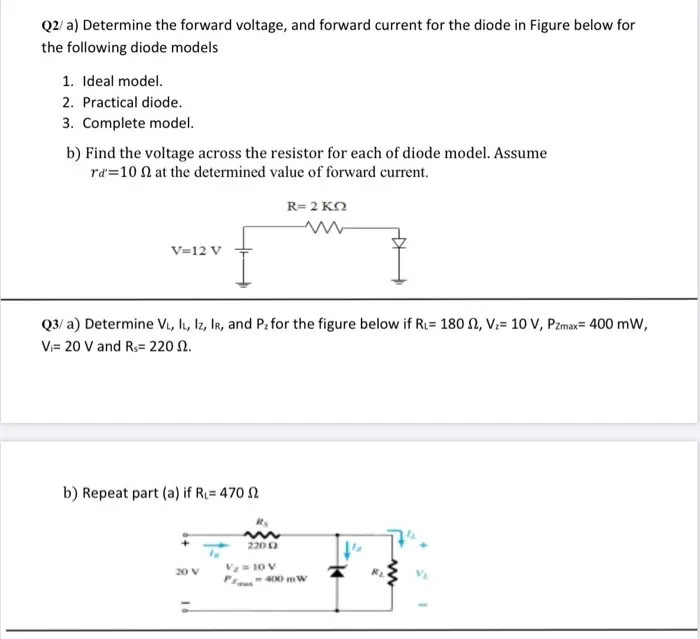

Q2/a) Determine the forward voltage, and forward current for the diode in Figure below for the following diode models 1. Ideal model. 2. Practical diode. 3. Complete model. b) Find the voltage across the resistor for each of diode model. Assume rd=10 at the determined value of forward current. R= 2 ΚΩ V=12 V ww Q3/a) Determine VL, IL, Iz, IR, and P₂ for the figure below if RL= 180 2, V2= 10 V, Pzmax= 400 mW, Vi= 20 V and Rs 220. b) Repeat part (a) if R₁= 470 2 2200 20 V V₂ = 10 V -400 mW
