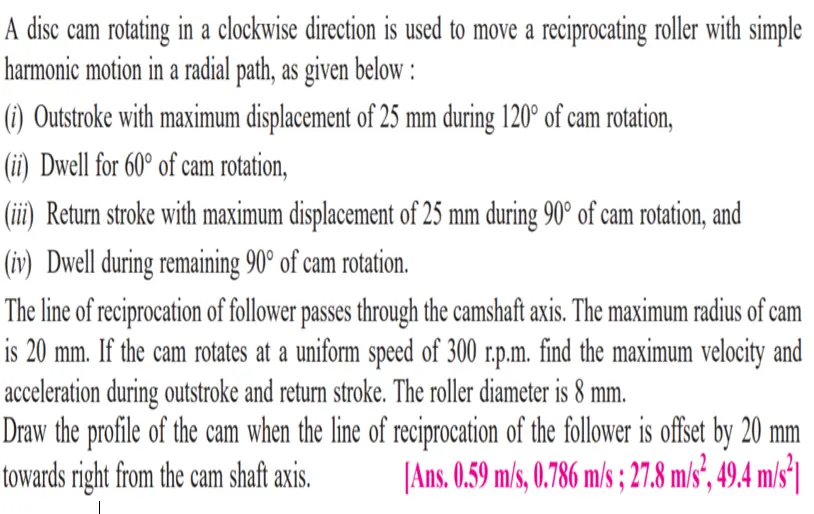

A disc cam rotating in a clockwise direction is used to move a reciprocating roller with simple harmonic motion in a radial path, as given below: (i) Outstroke with maximum displacement of 25 mm during 120° of cam rotation, (ii) Dwell for 60° of cam rotation, (iii) Return stroke with maximum displacement of 25 mm during 90° of cam rotation, and (iv) Dwell during remaining 90° of cam rotation. The line of reciprocation of follower passes through the camshaft axis. The maximum radius of cam is 20 mm. If the cam rotates at a uniform speed of 300 r.p.m. find the maximum velocity and acceleration during outstroke and return stroke. The roller diameter is 8 mm. Draw the profile of the cam when the line of reciprocation of the follower is offset by 20 mm towards right from the cam shaft axis. [Ans. 0.59 m/s, 0.786 m/s ; 27.8 m/s², 49.4 m/s²]
