السؤال
Transcribed Image Text:
10:09
% 71

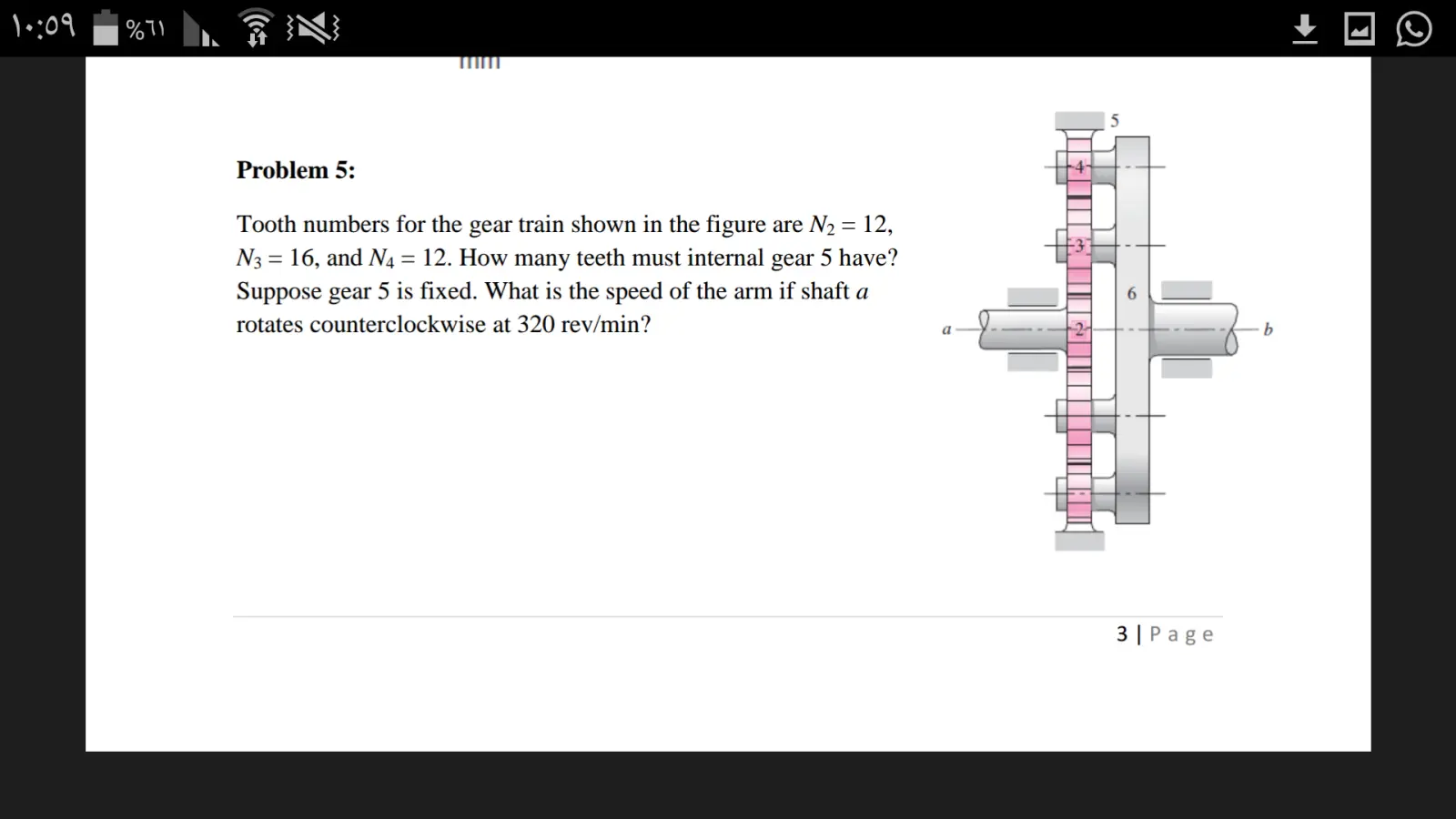

Problem 5:
Tooth numbers for the gear train shown in the figure are N₂ = 12,
N3 = 16, and №4 = 12. How many teeth must internal gear 5 have?
Suppose gear 5 is fixed. What is the speed of the arm if shaft a
rotates counterclockwise at 320 rev/min?
3| Page
b
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
