السؤال
Transcribed Image Text:

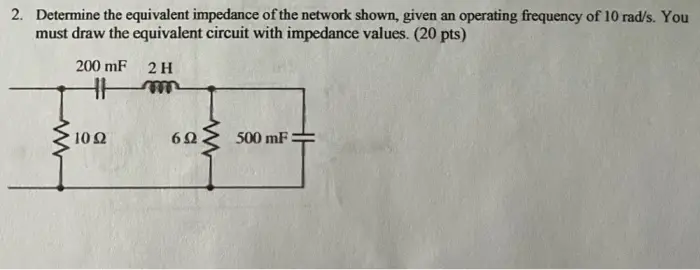

2. Determine the equivalent impedance of the network shown, given an operating frequency of 10 rad/s. You
must draw the equivalent circuit with impedance values. (20 pts)
200 mF
2 H
HH m
www
10 Ω
69
www
500 mF
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
