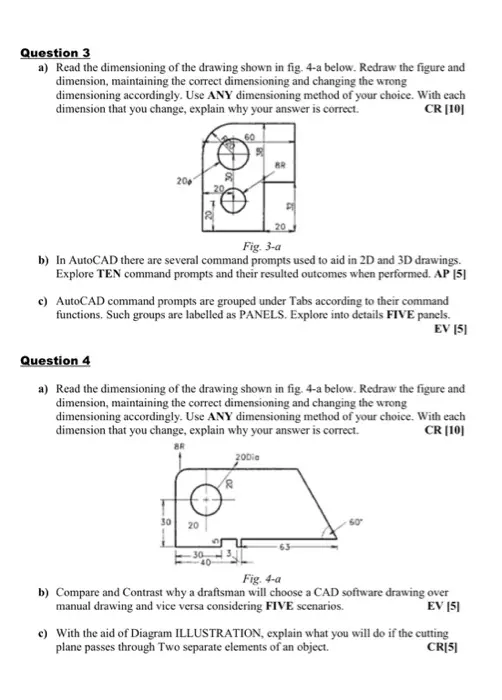

Question 3 a) Read the dimensioning of the drawing shown in fig. 4-a below. Redraw the figure and dimension, maintaining the correct dimensioning and changing the wrong dimensioning accordingly. Use ANY dimensioning method of your choice. With each dimension that you change, explain why your answer is correct. 60 CR [10] 20 BR P 20 Fig. 3-a b) In AutoCAD there are several command prompts used to aid in 2D and 3D drawings. Explore TEN command prompts and their resulted outcomes when performed. AP [5] c) AutoCAD command prompts are grouped under Tabs according to their command functions. Such groups are labelled as PANELS. Explore into details FIVE panels. Question 4 EV [5] a) Read the dimensioning of the drawing shown in fig. 4-a below. Redraw the figure and dimension, maintaining the correct dimensioning and changing the wrong dimensioning accordingly. Use ANY dimensioning method of your choice. With each dimension that you change, explain why your answer is correct. BR 200 CR [10] 30 20 Fig. 4-a b) Compare and Contrast why a draftsman will choose a CAD software drawing over manual drawing and vice versa considering FIVE scenarios. EV [5] c) With the aid of Diagram ILLUSTRATION, explain what you will do if the cutting plane passes through Two separate elements of an object. CR[5] Fig. 4-a b) Compare and Contrast why a draftsman will choose a CAD software drawing over manual drawing and vice versa considering FIVE scenarios. EV [5] c) With the aid of Diagram ILLUSTRATION, explain what you will do if the cutting plane passes through Two separate elements of an object. CR[5]
