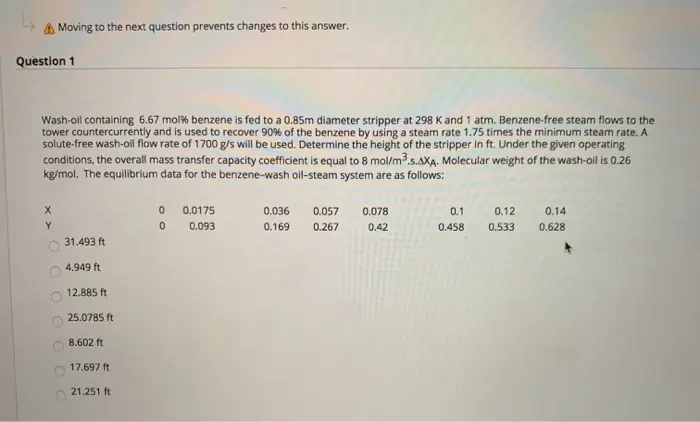

Question 1
Wash-oil containing 6.67 mol% benzene is fed to a 0.85m diameter stripper at 298 K and 1 atm. Benzene-free steam flows to the
tower countercurrently and is used to recover 90% of the benzene by using a steam rate 1.75 times the minimum steam rate. A
solute-free wash-oil flow rate of 1700 g/s will be used. Determine the height of the stripper in ft. Under the given operating
conditions, the overall mass transfer capacity coefficient is equal to 8 mol/m³.s.AXA. Molecular weight of the wash-oil is 0.26
kg/mol. The equilibrium data for the benzene-wash oil-steam system are as follows:
X
0
0.0175
0.036
0.057
0.078
0.1
0.12
0.14
Y
0
0.093
0.169
0.267
0.42
0.458
0.533
0.628
31.493 ft
4.949 ft
12.885 ft
25.0785 ft
8.602 ft
17.697 ft
21.251 ft
