السؤال
Transcribed Image Text:

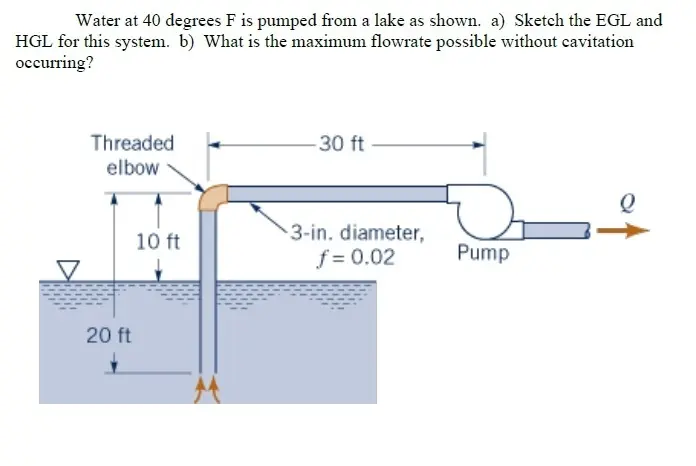

Water at 40 degrees F is pumped from a lake as shown. a) Sketch the EGL and
HGL for this system. b) What is the maximum flowrate possible without cavitation
occurring?
Threaded
elbow
30 ft
20 ft
10 ft
3-in. diameter,
f = 0.02
Pump
