السؤال
Transcribed Image Text:

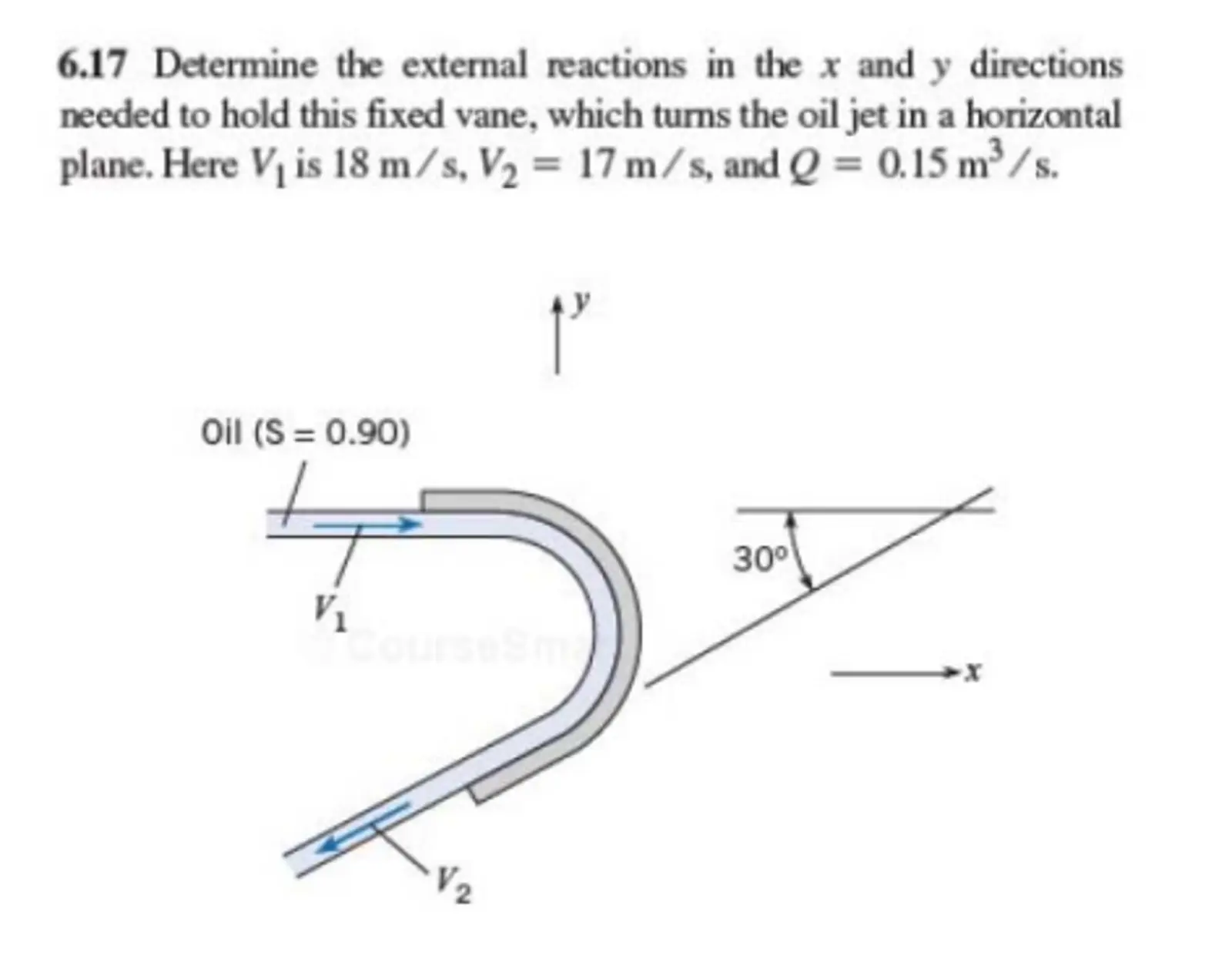

6.17 Determine the external reactions in the x and y directions
needed to hold this fixed vane, which turns the oil jet in a horizontal
plane. Here V₁ is 18 m/s, V₂ = 17 m/s, and Q = 0.15 m³/s.
Oil (S= 0.90)
V₁
CourseSm
↑
30°
2
-x
