السؤال
Transcribed Image Text:

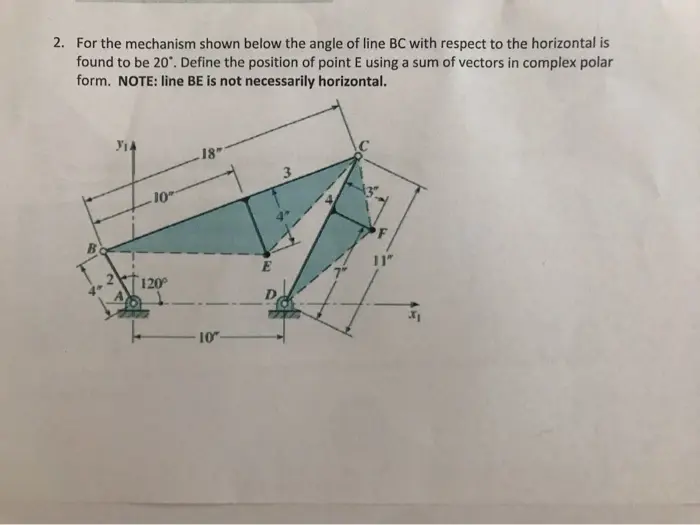

2. For the mechanism shown below the angle of line BC with respect to the horizontal is
found to be 20. Define the position of point E using a sum of vectors in complex polar
form. NOTE: line BE is not necessarily horizontal.
4
314
10
18"
3
F
11"
E
120°
10
