السؤال

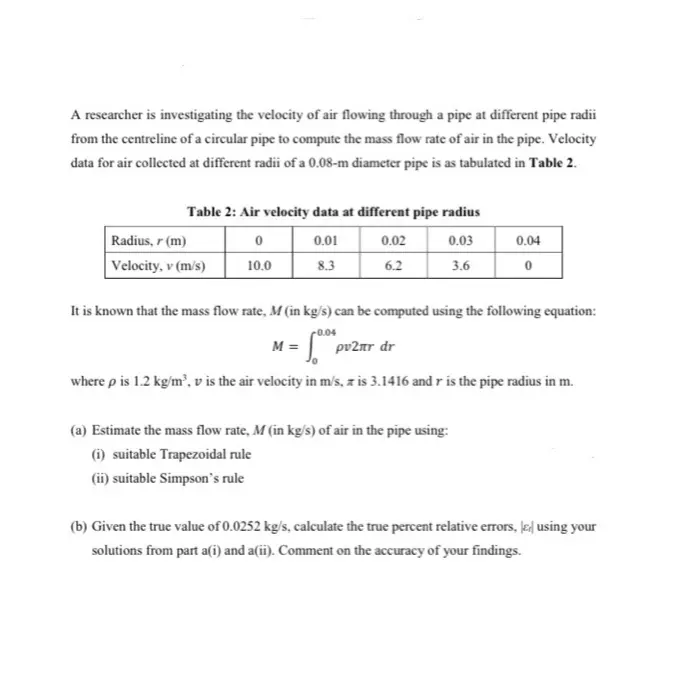

Transcribed Image Text:
A researcher is investigating the velocity of air flowing through a pipe at different pipe radii
from the centreline of a circular pipe to compute the mass flow rate of air in the pipe. Velocity
data for air collected at different radii of a 0.08-m diameter pipe is as tabulated in Table 2.
Table 2: Air velocity data at different pipe radius
Radius, r (m)
Velocity, v (m/s)
0
0.01
0.02
0.03
0.04
10.0
8.3
6.2
3.6
0
It is known that the mass flow rate, M (in kg/s) can be computed using the following equation:
0.04
M =
pv2лr dr
where p is 1.2 kg/m³, v is the air velocity in m/s, x is 3.1416 and r is the pipe radius in m.
(a) Estimate the mass flow rate, M (in kg/s) of air in the pipe using:
(i) suitable Trapezoidal rule
(ii) suitable Simpson's rule
(b) Given the true value of 0.0252 kg/s, calculate the true percent relative errors, using your
solutions from part a(i) and a(ii). Comment on the accuracy of your findings.
