السؤال

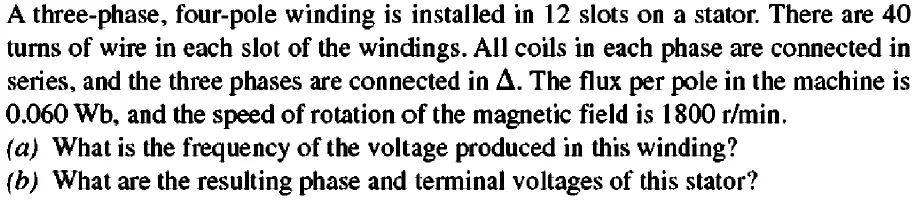

Transcribed Image Text:
A three-phase, four-pole winding is installed in 12 slots on a stator. There are 40
turns of wire in each slot of the windings. All coils in each phase are connected in
series, and the three phases are connected in A. The flux per pole in the machine is
0.060 Wb, and the speed of rotation of the magnetic field is 1800 r/min.
(a) What is the frequency of the voltage produced in this winding?
(b) What are the resulting phase and terminal voltages of this stator?
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
