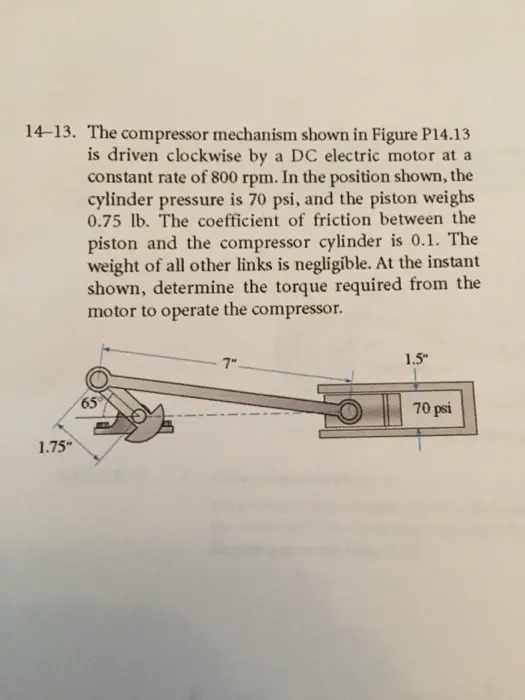

14-13. The compressor mechanism shown in Figure P14.13 is driven clockwise by a DC electric motor at a constant rate of 800 rpm. In the position shown, the cylinder pressure is 70 psi, and the piston weighs 0.75 lb. The coefficient of friction between the piston and the compressor cylinder is 0.1. The weight of all other links is negligible. At the instant shown, determine the torque required from the motor to operate the compressor. 1.75" 65 7" 1.5" 70 psi
