السؤال
Transcribed Image Text:

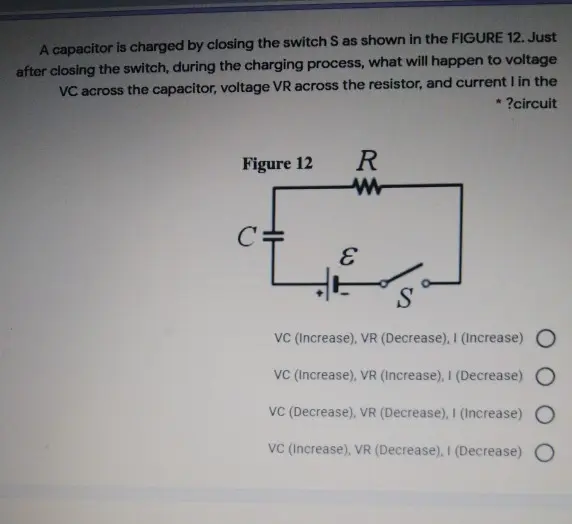

A capacitor is charged by closing the switch S as shown in the FIGURE 12. Just
after closing the switch, during the charging process, what will happen to voltage
VC across the capacitor, voltage VR across the resistor, and current I in the
"
?circuit
Figure 12
R
w
☑
3
S
VC (Increase), VR (Decrease), I (Increase) O
VC (Increase), VR (Increase), I (Decrease)
VC (Decrease), VR (Decrease), I (Increase) O
VC (Increase), VR (Decrease), I (Decrease)
