السؤال

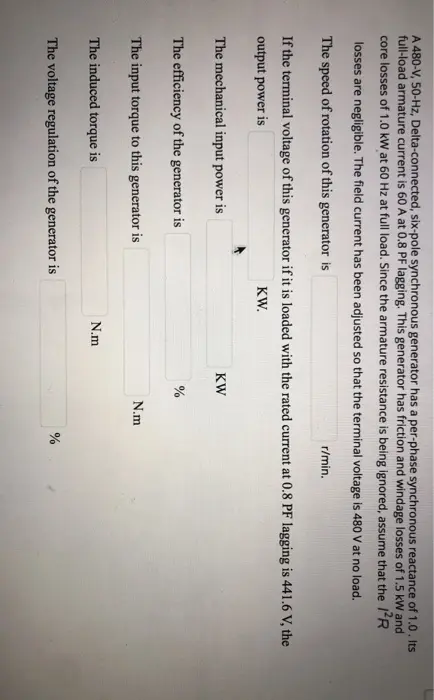

Transcribed Image Text:
A 480-V, 50-Hz, Delta-connected, six-pole synchronous generator has a per-phase synchronous reactance of 1.0. Its
full-load armature current is 60 A at 0.8 PF lagging. This generator has friction and windage losses of 1.5 kW and
core losses of 1.0 kW at 60 Hz at full load. Since the armature resistance is being ignored, assume that the ²R
losses are negligible. The field current has been adjusted so that the terminal voltage is 480 V at no load.
The speed of rotation of this generator is
r/min.
If the terminal voltage of this generator if it is loaded with the rated current at 0.8 PF lagging is 441.6 V, the
output power is
The mechanical input power is
KW.
KW
The efficiency of the generator is
%
The input torque to this generator is
N.m
The induced torque is
N.m
%
The voltage regulation of the generator is
