السؤال
Transcribed Image Text:
252
88
3969
1.

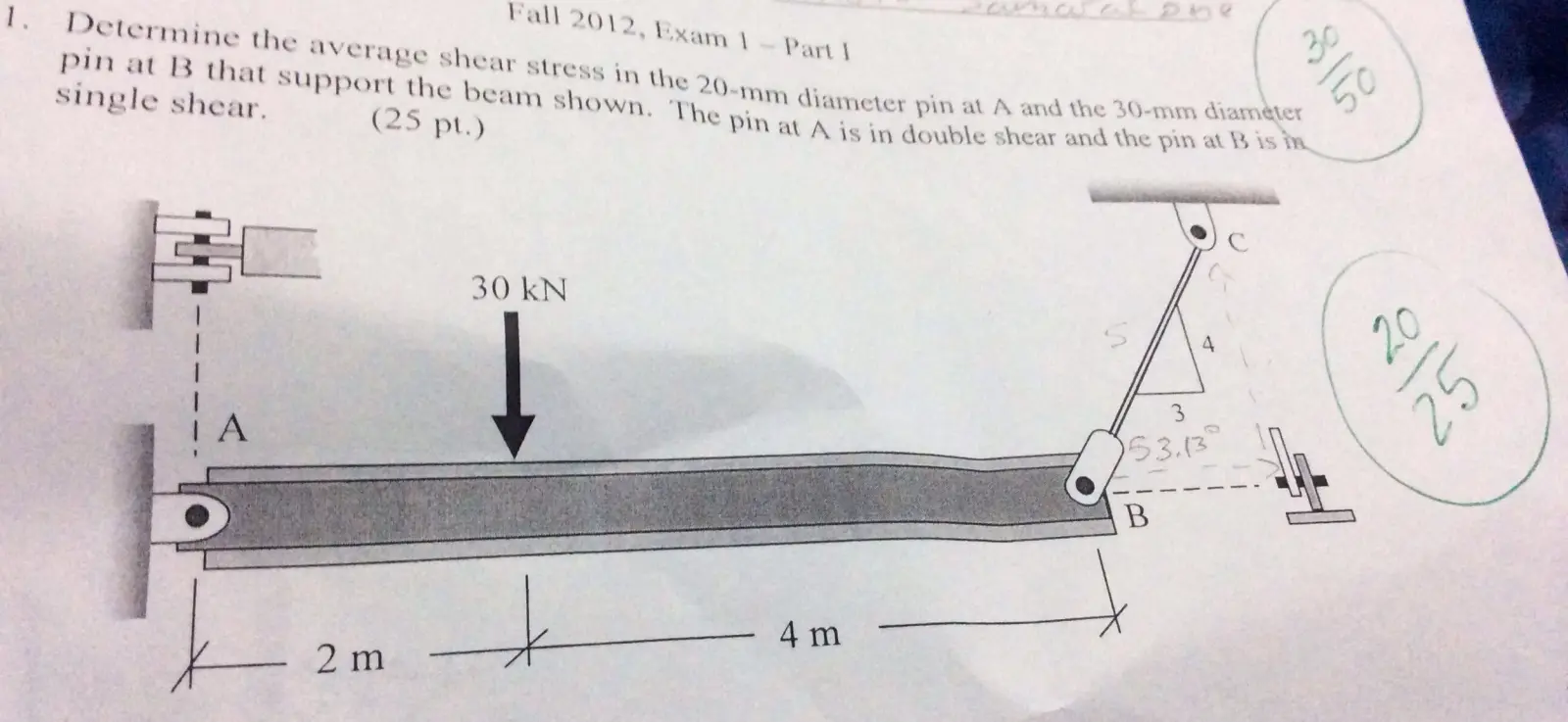

Fall 2012, Exam 1-Part I
Determine the average shear stress in the 20-mm diameter pin at A and the 30-mm diameter
pin at B that support the beam shown. The pin at A is in double shear and the pin at B is in
single shear.
(25 pt.)
A
2 m
30 kN
+
4 m
3
4
53.13
B
C
20
25
