السؤال
Transcribed Image Text:

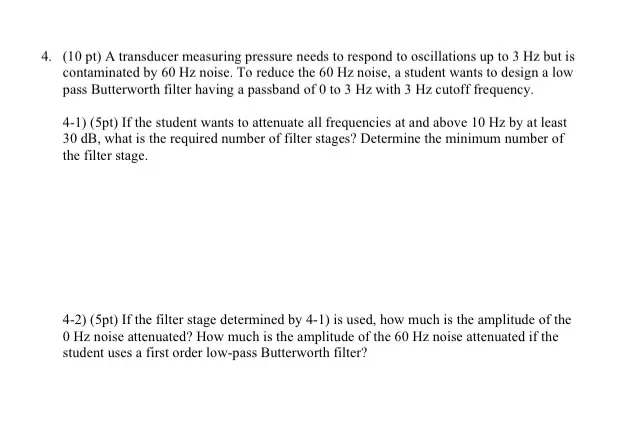

4. (10 pt) A transducer measuring pressure needs to respond to oscillations up to 3 Hz but is
contaminated by 60 Hz noise. To reduce the 60 Hz noise, a student wants to design a low
pass Butterworth filter having a passband of 0 to 3 Hz with 3 Hz cutoff frequency.
4-1) (5pt) If the student wants to attenuate all frequencies at and above 10 Hz by at least
30 dB, what is the required number of filter stages? Determine the minimum number of
the filter stage.
4-2) (5pt) If the filter stage determined by 4-1) is used, how much is the amplitude of the
0 Hz noise attenuated? How much is the amplitude of the 60 Hz noise attenuated if the
student uses a first order low-pass Butterworth filter?
