السؤال
Transcribed Image Text:

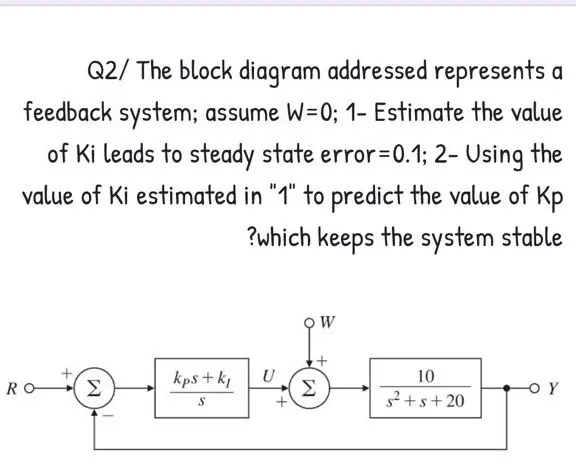

Q2/ The block diagram addressed represents a
feedback system; assume W=0; 1- Estimate the value
of Ki leads to steady state error=0.1; 2- Using the
value of Ki estimated in "1" to predict the value of Kp
?which keeps the system stable
OW
Ro Σ
kps+kj
U
10
Σ
Y
S
s²+s+20
