السؤال
Transcribed Image Text:

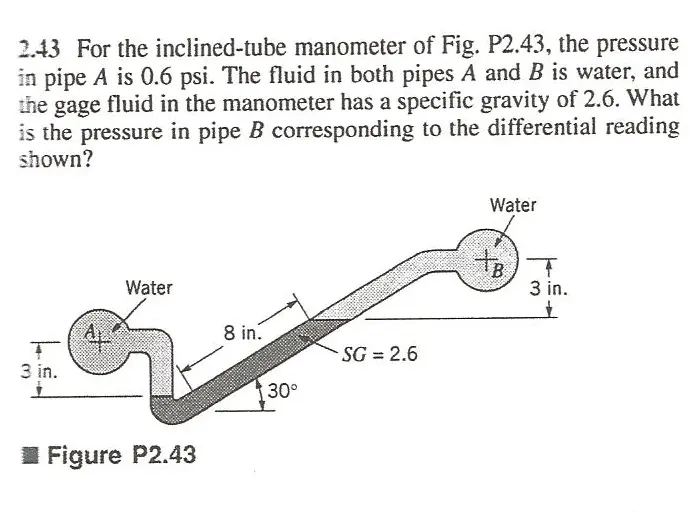

2.43 For the inclined-tube manometer of Fig. P2.43, the pressure
in pipe A is 0.6 psi. The fluid in both pipes A and B is water, and
the gage fluid in the manometer has a specific gravity of 2.6. What
is the pressure in pipe B corresponding to the differential reading
shown?
T
3 in.
Water
Figure P2.43
8 in.
SG = 2.6
30°
Water
3 in.
