السؤال
Transcribed Image Text:

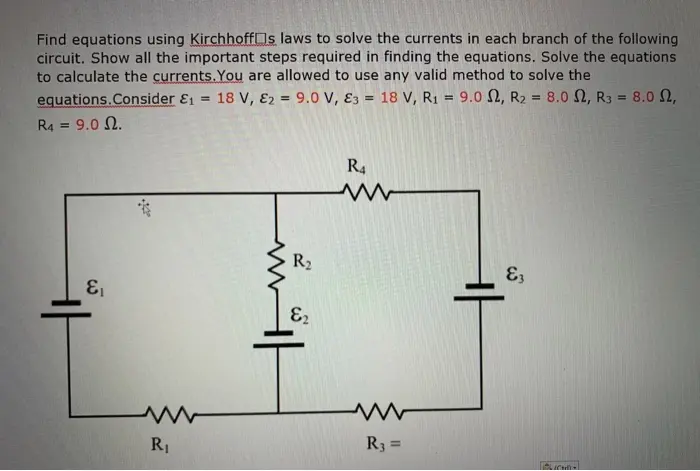

Find equations using Kirchhoffs laws to solve the currents in each branch of the following
circuit. Show all the important steps required in finding the equations. Solve the equations
to calculate the currents. You are allowed to use any valid method to solve the
equations.Consider &₁ = 18 V, 29.0 V, E3 = 18 V, R₁ = 9.0 S2, R2 = 8.0 S2, R3 = 8.0 2,
R4 = 9.0 2.
R₂
3
E₁
E2
تہ
R4
www
w
R3 =
E
