السؤال

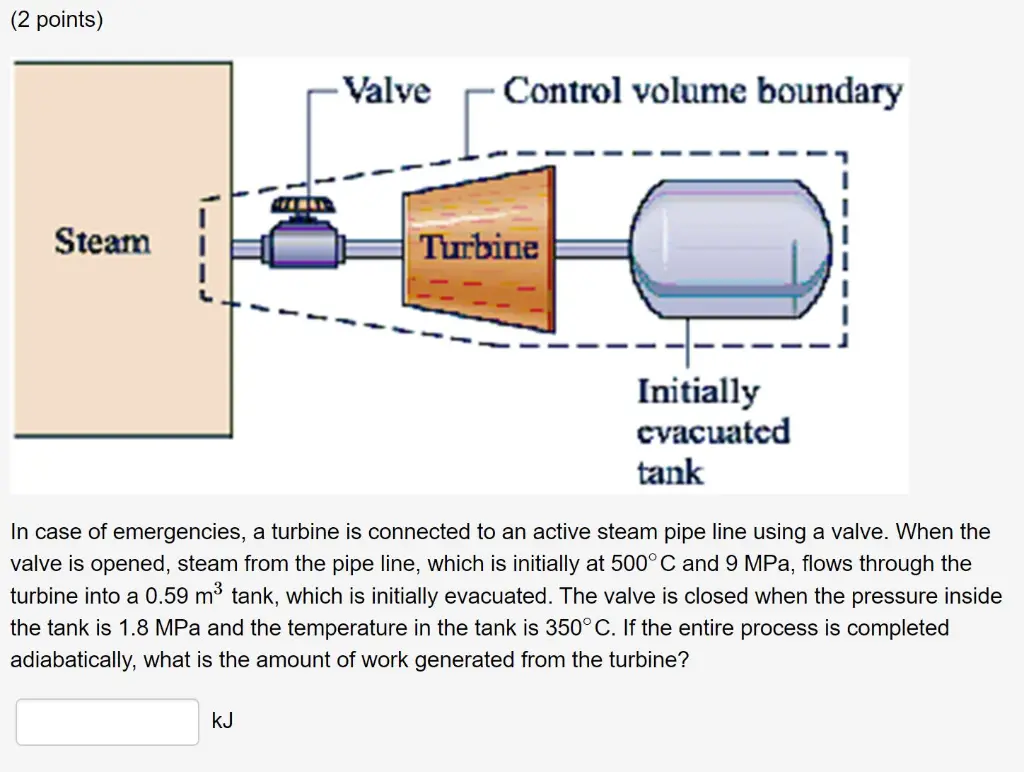

Transcribed Image Text:
(2 points)
Steam
-Valve Control volume boundary
Turbine
Initially
evacuated
tank
In case of emergencies, a turbine is connected to an active steam pipe line using a valve. When the
valve is opened, steam from the pipe line, which is initially at 500° C and 9 MPa, flows through the
turbine into a 0.59 m³ tank, which is initially evacuated. The valve is closed when the pressure inside
the tank is 1.8 MPa and the temperature in the tank is 350°C. If the entire process is completed
adiabatically, what is the amount of work generated from the turbine?
KJ
