السؤال
Transcribed Image Text:

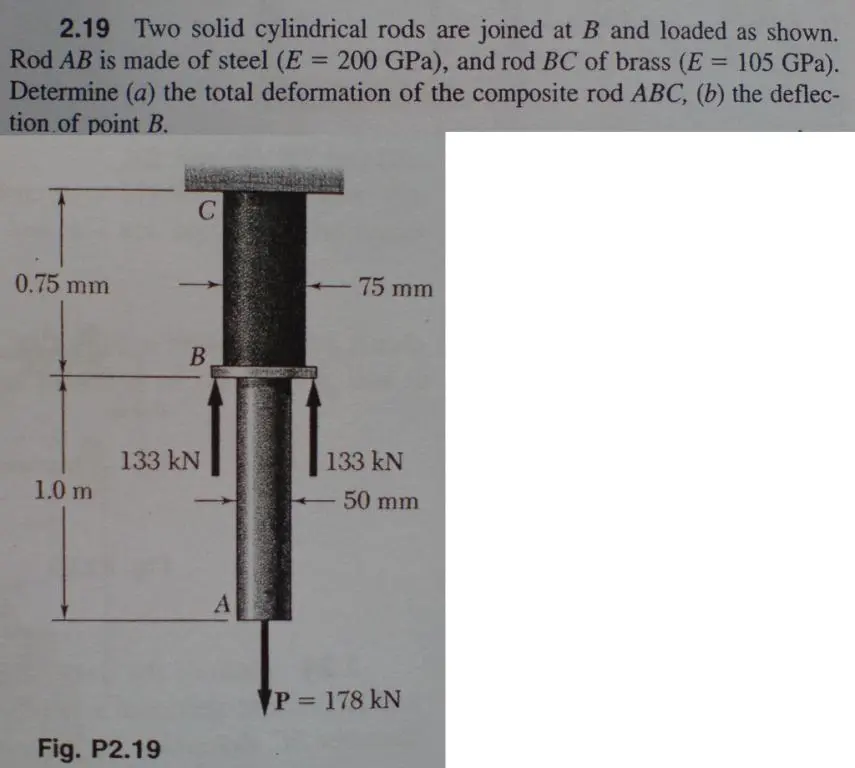

2.19 Two solid cylindrical rods are joined at B and loaded as shown.
Rod AB is made of steel (E = 200 GPa), and rod BC of brass (E = 105 GPa).
Determine (a) the total deformation of the composite rod ABC, (b) the deflec-
tion of point B.
0.75 mm
C
B
75 mm
133 kN
133 kN
1.0 m
50 mm
A
P=178 kN
Fig. P2.19
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
