السؤال
Transcribed Image Text:

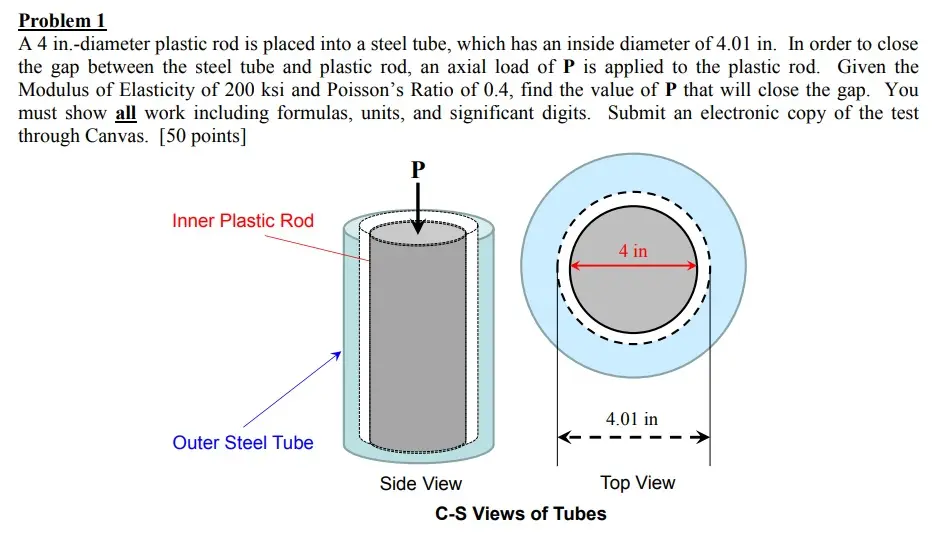

Problem 1
A 4 in.-diameter plastic rod is placed into a steel tube, which has an inside diameter of 4.01 in. In order to close
the gap between the steel tube and plastic rod, an axial load of P is applied to the plastic rod. Given the
Modulus of Elasticity of 200 ksi and Poisson's Ratio of 0.4, find the value of P that will close the gap. You
must show all work including formulas, units, and significant digits. Submit an electronic copy of the test
through Canvas. [50 points]
P
Inner Plastic Rod
Outer Steel Tube
4 in
4.01 in
Side View
Top View
C-S Views of Tubes
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
