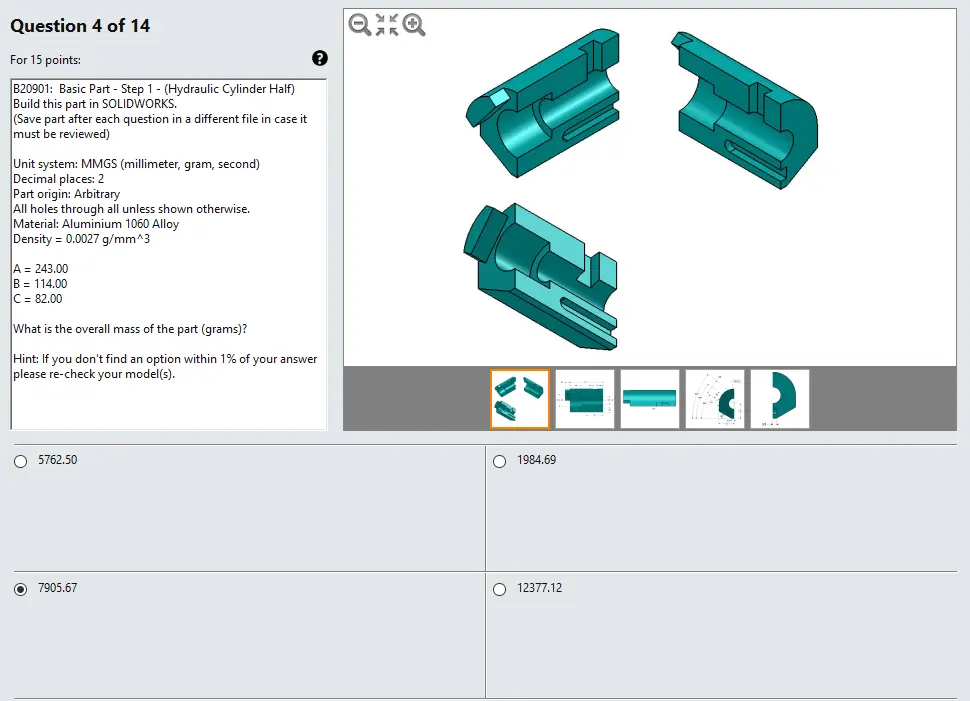

Question 4 of 14 For 15 points: B20901: Basic Part - Step 1 - (Hydraulic Cylinder Half) Build this part in SOLIDWORKS. (Save part after each question in a different file in case it must be reviewed) Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 A = 243.00 B = 114.00 C = 82.00 What is the overall mass of the part (grams)? Hint: If you don't find an option within 1% of your answer please re-check your model(s). 5762.50 7905.67 1984.69 12377.12 Question 4 of 14 For 15 points: B20901: Basic Part-Step 1 - (Hydraulic Cylinder Half) Build this part in SOLIDWORKS. (Save part after each question in a different file in case it must be reviewed) Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 A = 243.00 B = 114.00 C = 82.00 What is the overall mass of the part (grams)? Hint: If you don't find an option within 1% of your answer please re-check your model(s). ○ 5762.50 7905.67 Qx33- 78 88.90 1984.69 12377.12 R11 A 33- 38 B 57.15 26 Question 4 of 14 For 15 points: B20901: Basic Part-Step 1 - (Hydraulic Cylinder Half) Build this part in SOLIDWORKS. (Save part after each question in a different file in case it must be reviewed) Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 A = 243.00 B=114.00 C = 82.00 What is the overall mass of the part (grams)? Hint: If you don't find an option within 1% of your answer please re-check your model(s). 5762.50 7905.67 QxQ 1984.69 12377.12 19- , Question 4 of 14 For 15 points: B20901: Basic Part-Step 1 - (Hydraulic Cylinder Half) Build this part in SOLIDWORKS. (Save part after each question in a different file in case it must be reviewed) Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 A = 243.00 B = 114.00 C = 82.00 What is the overall mass of the part (grams)? Hint: If you don't find an option within 1% of your answer please re-check your model(s). ○ 5762.50 7905.67 QQ 82 R (C) 38° 41 38° 38° 51 с 1984.69 O 12377.12 30° 13- с Question 4 of 14 For 15 points: B20901: Basic Part-Step 1 - (Hydraulic Cylinder Half) Build this part in SOLIDWORKS. (Save part after each question in a different file in case it must be reviewed) Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 A = 243.00 B = 114.00 C = 82.00 What is the overall mass of the part (grams)? Hint: If you don't find an option within 1% of your answer please re-check your model(s). QxQ 13 5762.50 7905.67 1984.69 12377.12 Question 5 of 14 For 15 points: B20902: Basic Part-Step 2 - (Hydraulic Cylinder Half) Modify the part in SOLIDWORKS Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 Modify the part using the following variable values: A = 248.00 B= 117.00 C = 84.00 D = 5 degrees 1 - Note: Draft added on the side walls of the top notch (Angle D) 2 - Note: Assume all unshown dimensions are the same as in the previous question. QxQ Enter Value (g): (use. (point) as decimal separator) Question 5 of 14 For 15 points: B20902: Basic Part - Step 2 - (Hydraulic Cylinder Half) Modify the part in SOLIDWORKS Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 Modify the part using the following variable values: A = 248.00 B = 117.00 C = 84.00 D = 5 degrees 1- Note: Draft added on the side walls of the top notch (Angle D) 2- Note: Assume all unshown dimensions are the same as in the previous question. axa A Enter Value (g): (use. (point) as decimal separator) B Question 5 of 14 For 15 points: B20902: Basic Part-Step 2 - (Hydraulic Cylinder Half) Modify the part in SOLIDWORKS Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 Modify the part using the following variable values: A = 248.00 B = 117.00 C = 84.00 D = 5 degrees 1- Note: Draft added on the side walls of the top notch (Angle D) 2- Note: Assume all unshown dimensions are the same as in the previous question. QxQ Enter Value (g): (use. (point) as decimal separator) D D 1933 33 +38→ Question 5 of 14 For 15 points: B20902: Basic Part - Step 2 - (Hydraulic Cylinder Half) Modify the part in SOLIDWORKS Unit system: MMGS (millimeter, gram, second) Decimal places: 2 Part origin: Arbitrary All holes through all unless shown otherwise. Material: Aluminium 1060 Alloy Density = 0.0027 g/mm^3 Modify the part using the following variable values: A = 248.00 B = 117.00 C = 84.00 D = 5 degrees 1- Note: Draft added on the side walls of the top notch (Angle D) 2 - Note: Assume all unshown dimensions are the same as in the previous question. Qxa R (C) Enter Value (g):| (use. (point) as decimal separator)
