السؤال
Transcribed Image Text:

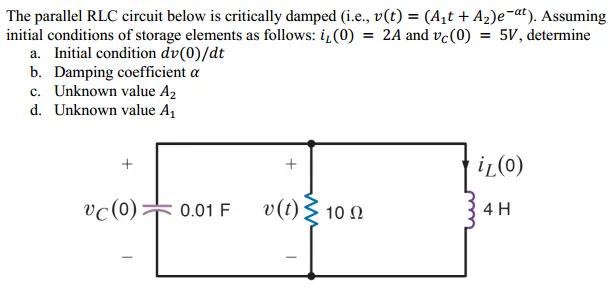

The parallel RLC circuit below is critically damped (i.e., v(t) = (A₁t + A2)eat). Assuming
initial conditions of storage elements as follows: i,(0) = 2A and vc (0)
a. Initial condition dv(0)/dt
b. Damping coefficient a
c. Unknown value A₂
d. Unknown value A₁
=5V, determine
+
iL(0)
vc(0) 0.01 F
v(t)10
4 H
-
