السؤال

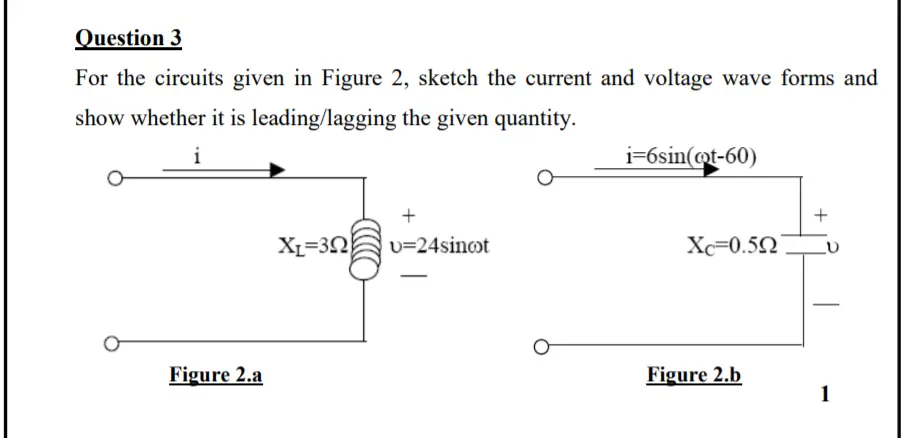

Transcribed Image Text:
Question 3
For the circuits given in Figure 2, sketch the current and voltage wave forms and
show whether it is leading/lagging the given quantity.
i
Figure 2.a
XL=392
+
v=24sinot
i=6sin(oot-60)
+
Xc=0.50
ט.
Figure 2.b
1
