السؤال

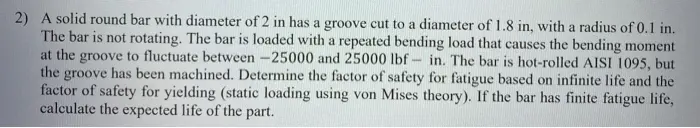

Transcribed Image Text:

2) A solid round bar with diameter of 2 in has a groove cut to a diameter of 1.8 in, with a radius of 0.1 in. The bar is not rotating. The bar is loaded with a repeated bending load that causes the bending moment at the groove to fluctuate between -25000 and 25000 lbf in. The bar is hot-rolled AISI 1095, but the groove has been machined. Determine the factor of safety for fatigue based on infinite life and the factor of safety for yielding (static loading using von Mises theory). If the bar has finite fatigue life, calculate the expected life of the part.

check_circle الجواب — حل مفصل خطوة بخطوة

hourglass_top
