السؤال

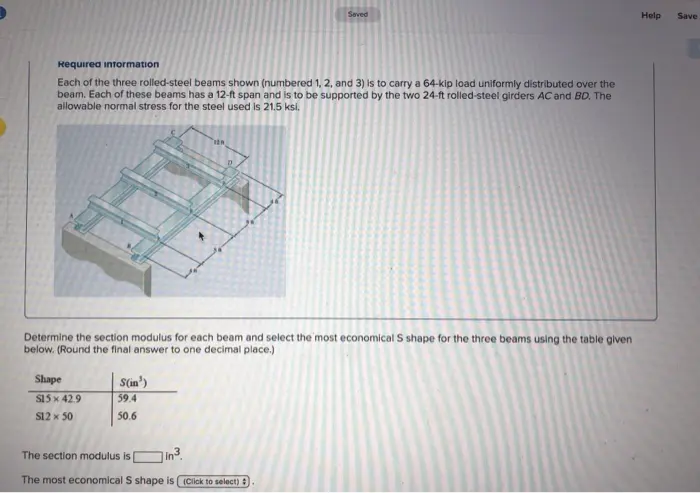

Transcribed Image Text:
Saved
Required information
Each of the three rolled-steel beams shown (numbered 1, 2, and 3) is to carry a 64-kip load uniformly distributed over the
beam. Each of these beams has a 12-ft span and is to be supported by the two 24-ft rolled-steel girders AC and BD. The
allowable normal stress for the steel used is 21.5 ksi.
Determine the section modulus for each beam and select the most economical S shape for the three beams using the table given
below. (Round the final answer to one decimal place.)
Shape
S(in')
515 x 429
59.4
S12 x 50
50.6
The section modulus is |
The most economical S shape is (Click to select)
Help
Save
