السؤال

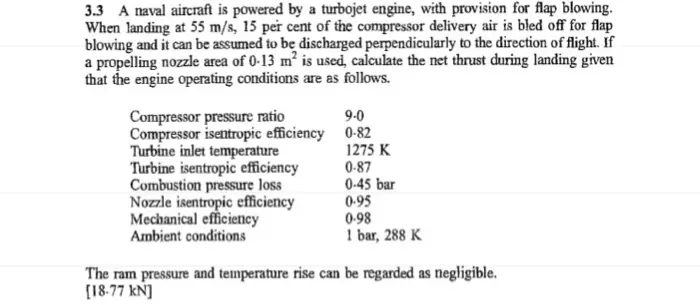

Transcribed Image Text:
3.3 A naval aircraft is powered by a turbojet engine, with provision for flap blowing.
When landing at 55 m/s, 15 per cent of the compressor delivery air is bled off for flap
blowing and it can be assumed to be discharged perpendicularly to the direction of flight. If
a propelling nozzle area of 0-13 m² is used, calculate the net thrust during landing given
that the engine operating conditions are as follows.
Compressor pressure ratio
9-0
Compressor isentropic efficiency 0-82
Turbine inlet temperature
Turbine isentropic efficiency
Combustion pressure loss
Nozzle isentropic efficiency
Mechanical efficiency
Ambient conditions
1275 K
0-87
0-45 bar
0.95
0.98
1 bar, 288 K
The ram pressure and temperature rise can be regarded as negligible.
[18-77 kN]
