السؤال

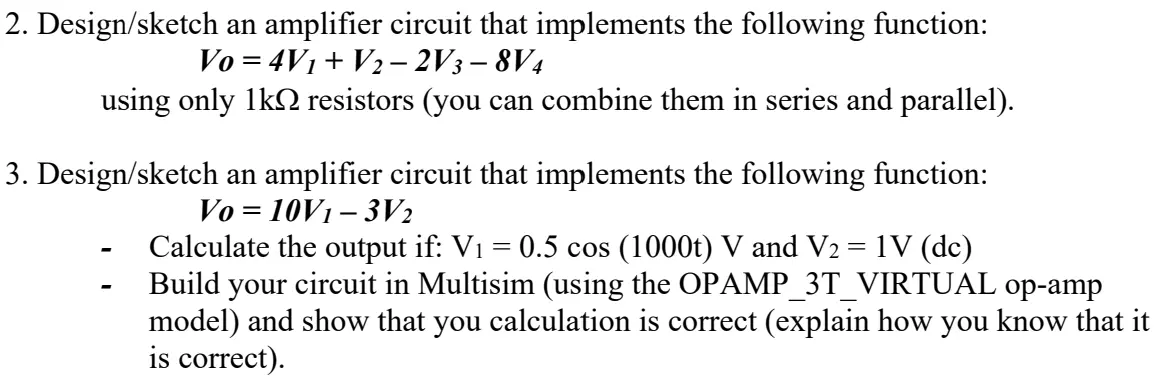

Transcribed Image Text:
2. Design/sketch an amplifier circuit that implements the following function:
Vo=4V1+V2 - 2V3 - 8V4
using only 1k resistors (you can combine them in series and parallel).
3. Design/sketch an amplifier circuit that implements the following function:
Vo 10V1-3V2
-
-
=
Calculate the output if: V₁ = 0.5 cos (1000t) V and V2 = 1V (dc)
Build your circuit in Multisim (using the OPAMP_3T_VIRTUAL op-amp
model) and show that you calculation is correct (explain how you know that it
is correct).
