السؤال
Transcribed Image Text:

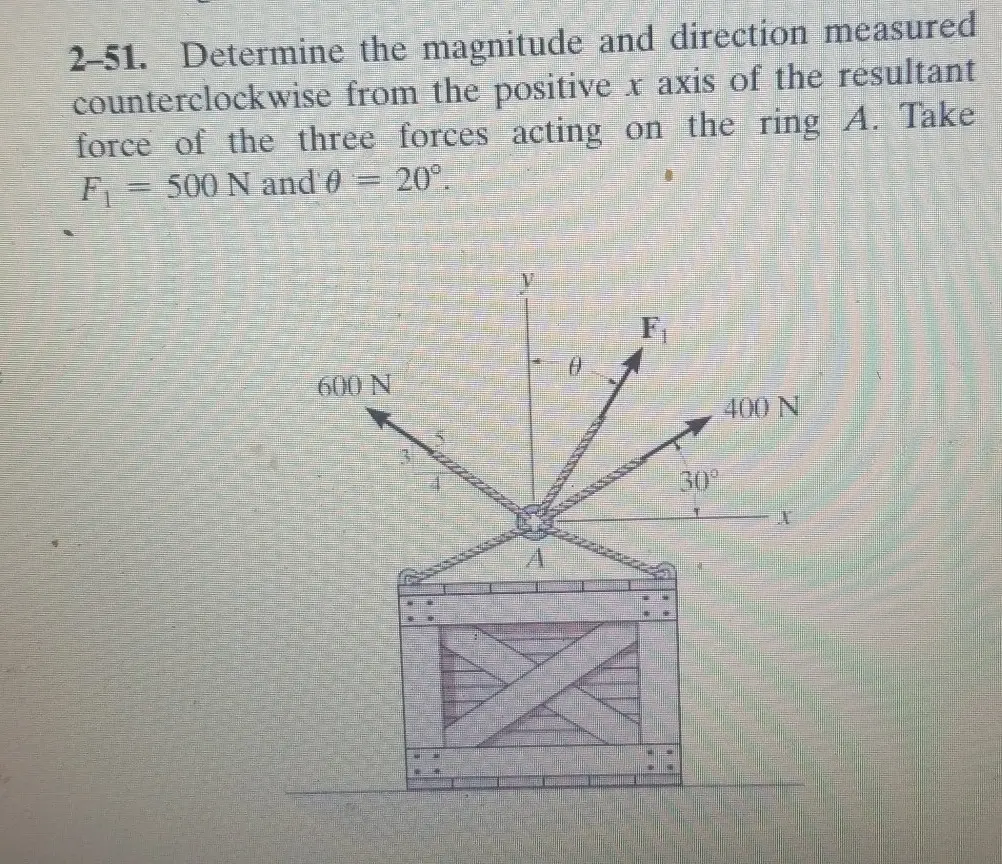

2-51. Determine the magnitude and direction measured
counterclockwise from the positive x axis of the resultant
force of the three forces acting on the ring A. Take
F₁ = 500 N and 0
20°
F₁
600 N
400 N
30°
