السؤال
Transcribed Image Text:

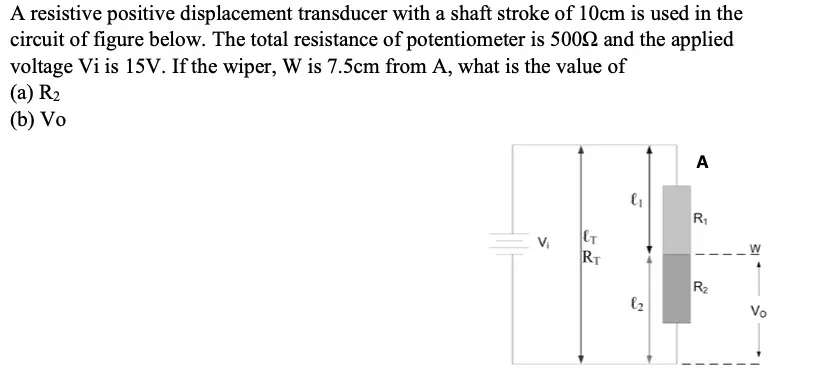

A resistive positive displacement transducer with a shaft stroke of 10cm is used in the
circuit of figure below. The total resistance of potentiometer is 5002 and the applied
voltage Vi is 15V. If the wiper, W is 7.5cm from A, what is the value of
(a) R₂
(b) Vo
A
R₁
T
V₁
RT
R₂
(2
Vo
