السؤال
Transcribed Image Text:

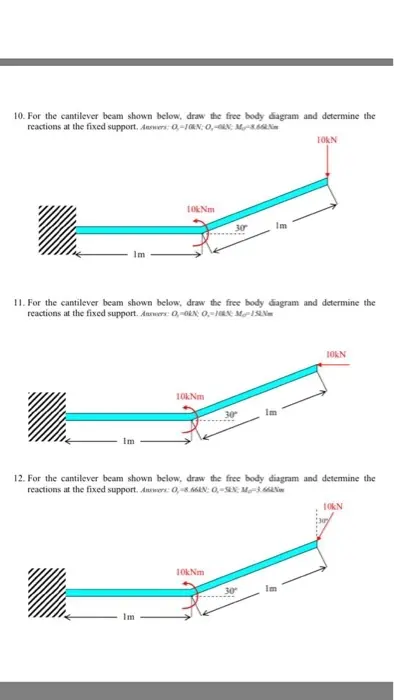

10. For the cantilever beam shown below, draw the free body diagram and determine the
reactions at the fixed support. Auswers: 0-1: 0,-NM-86
Im
10kNm
30
Im
10kN
11. For the cantilever beam shown below, draw the free body diagram and determine the
reactions at the fixed support. Answers: 0-0 0-1
M15
Im
10kNm
30°
10kN
12. For the cantilever beam shown below, draw the free body diagram and determine the
reactions at the fixed support. Answers: 0,-8.66N: 0-SNM-366
Im
10kNm
30°
10KN
