السؤال

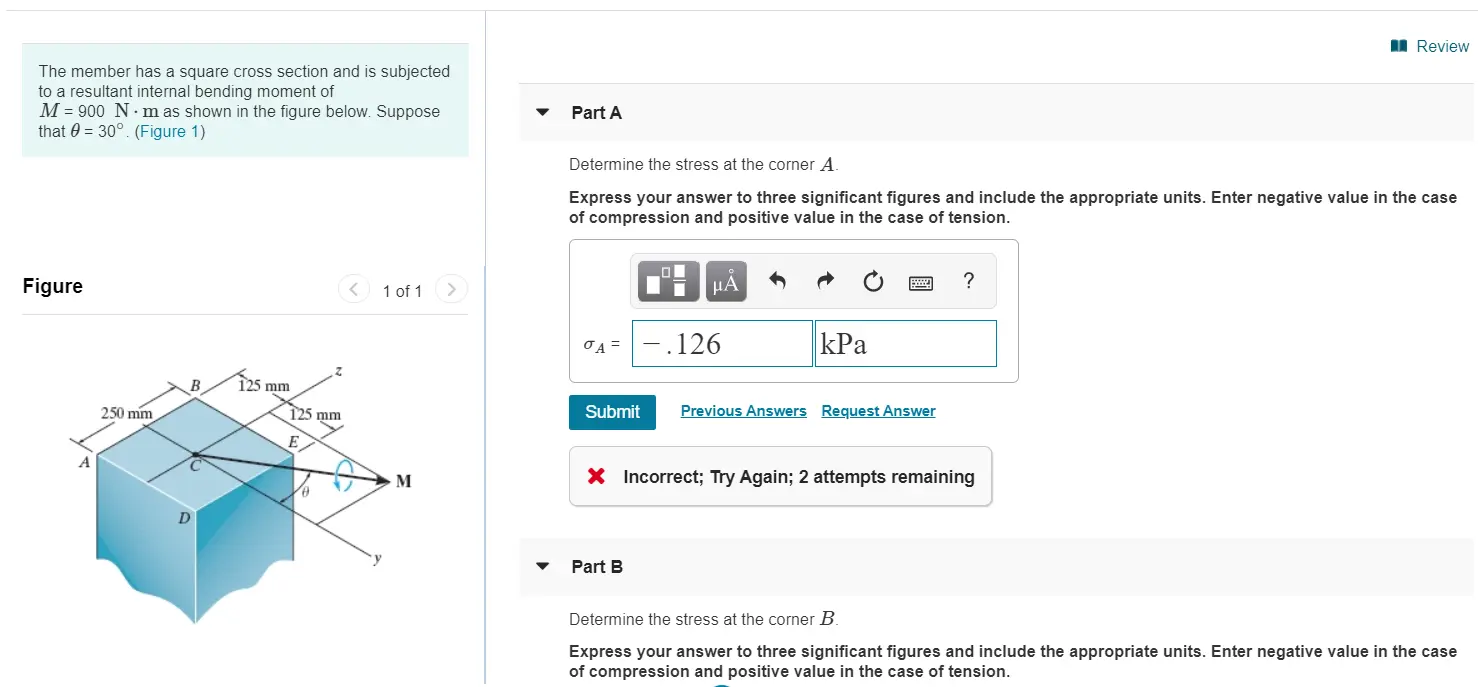

Transcribed Image Text:
Review
The member has a square cross section and is subjected
to a resultant internal bending moment of
M = 900 N m as shown in the figure below. Suppose
that 30° (Figure 1)
Part A
Determine the stress at the corner A.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case
of compression and positive value in the case of tension.
Figure
A
250 mm
B
125 mm
125 mm
E
D
<
1 of 1
M
<
HÅ
?
σA =
-.126
kPa
Submit
Previous Answers Request Answer
X Incorrect; Try Again; 2 attempts remaining
Part B
Determine the stress at the corner B.
Express your answer to three significant figures and include the appropriate units. Enter negative value in the case
of compression and positive value in the case of tension.
