السؤال

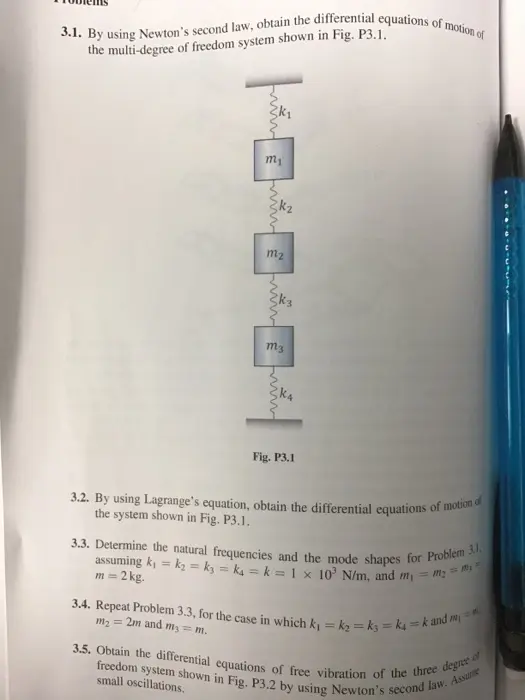

Transcribed Image Text:
3.1. By using Newton's second law, obtain the differential equations of motion of
the multi-degree of freedom system shown in Fig. P3.1."
mi
m2
m3
wwwww₤
wwww
Fig. P3.1
3.2. By using Lagrange's equation, obtain the differential equations of motion of
the system shown in Fig. P3.1.
3.3. Determine the natural frequencies and the mode shapes for Problem 3.1.
assuming k₁ = k₂ = k3=k4= k 1 x 10 N/m, and m, my=m=
m = 2 kg.
3.4. Repeat Problem 3.3, for the case in which k₁ = k₂ = k3=kk and my "
m2 = 2m and my = m.
of
3.5. Obtain the differential equations of free vibration of the three degree o
freedom system shown in Fig. P3.2 by using Newton's second law. Assume
small oscillations.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
