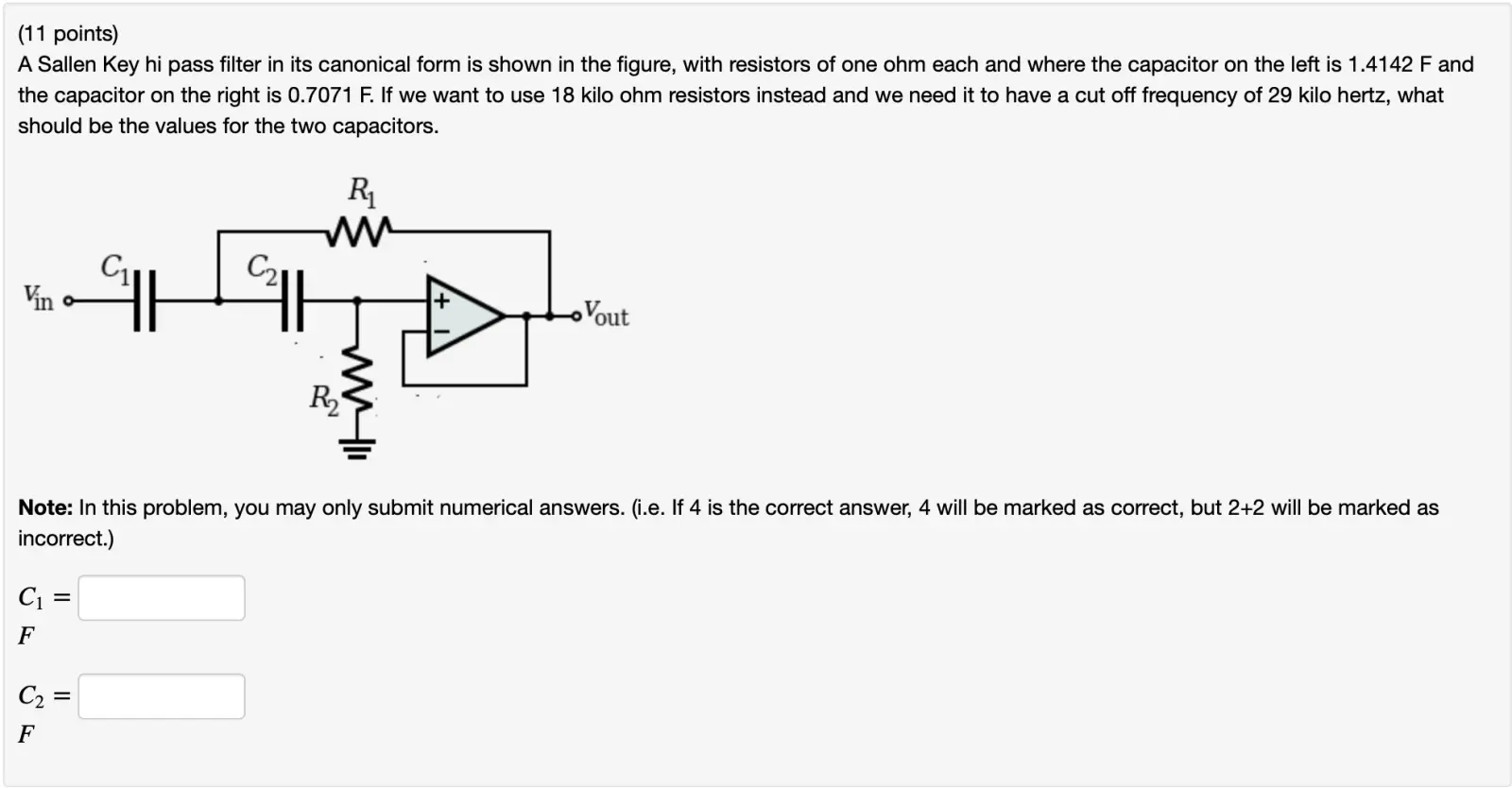

(11 points)
A Sallen Key hi pass filter in its canonical form is shown in the figure, with resistors of one ohm each and where the capacitor on the left is 1.4142 F and
the capacitor on the right is 0.7071 F. If we want to use 18 kilo ohm resistors instead and we need it to have a cut off frequency of 29 kilo hertz, what
should be the values for the two capacitors.
R₁
ww
C21
Vin
R₁₂
Vout
Note: In this problem, you may only submit numerical answers. (i.e. If 4 is the correct answer, 4 will be marked as correct, but 2+2 will be marked as
incorrect.)
C1
F
=
C₂ =
