السؤال

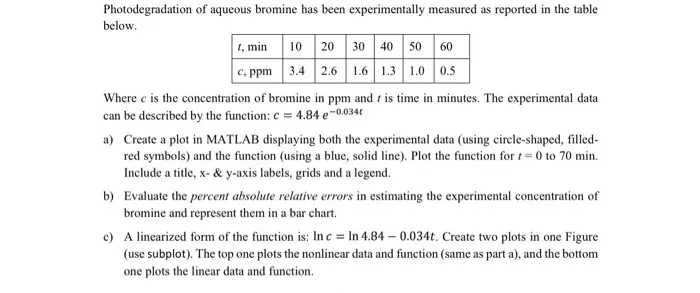

Transcribed Image Text:
Photodegradation of aqueous bromine has been experimentally measured as reported in the table
below.
1, min
10 20 30 40
50 60
c, ppm 3.4 2.6 1.6 1.3 1.0 0.5
Where c is the concentration of bromine in ppm and 7 is time in minutes. The experimental data
can be described by the function: c = 4.84 e-0.034t
a) Create a plot in MATLAB displaying both the experimental data (using circle-shaped, filled-
red symbols) and the function (using a blue, solid line). Plot the function for 10 to 70 min.
Include a title, x- & y-axis labels, grids and a legend.
b) Evaluate the percent absolute relative errors in estimating the experimental concentration of
bromine and represent them in a bar chart.
c) A linearized form of the function is: In c In 4.84 0.034t. Create two plots in one Figure
(use subplot). The top one plots the nonlinear data and function (same as part a), and the bottom
one plots the linear data and function.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
