السؤال
Transcribed Image Text:

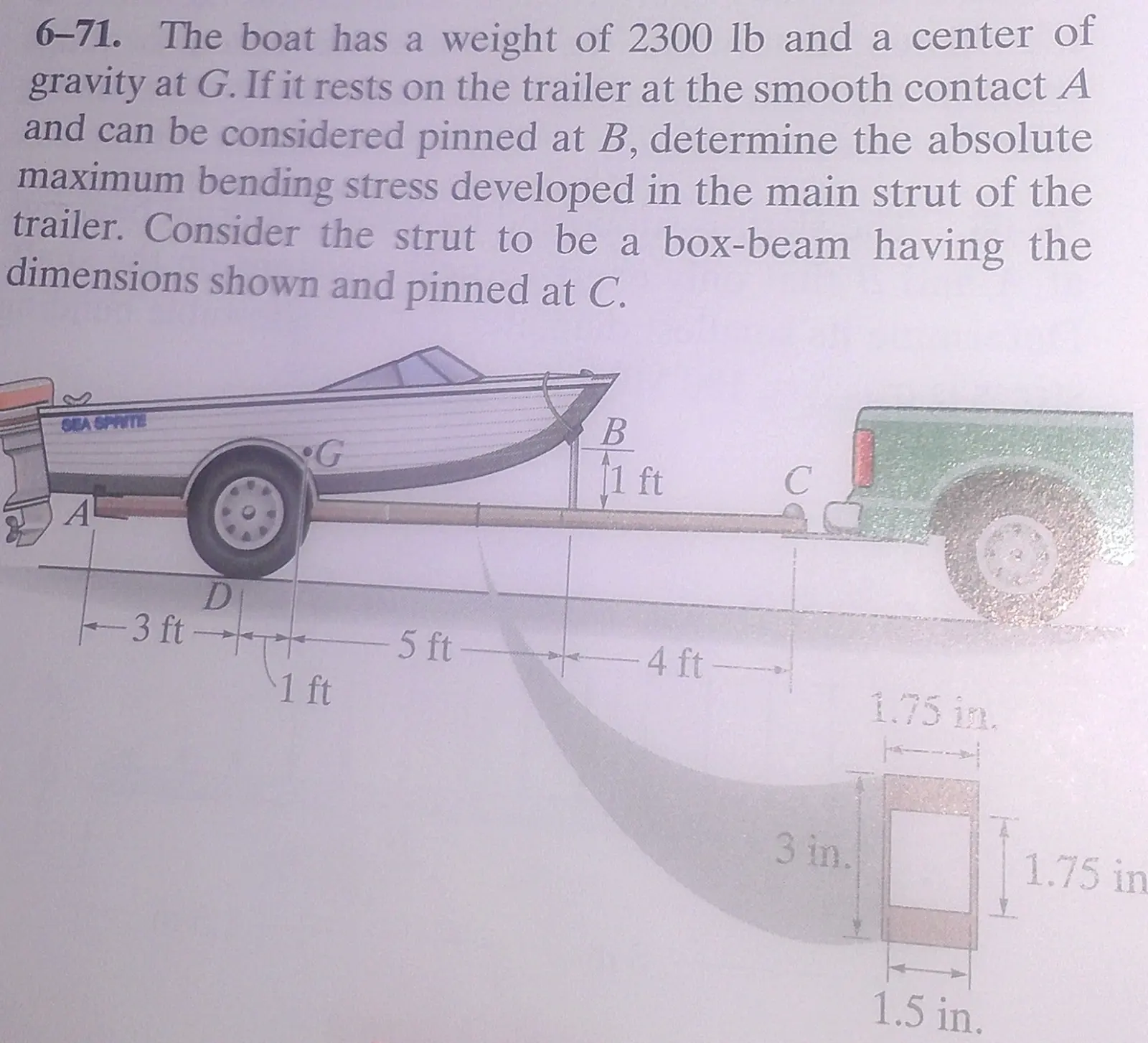

6-71. The boat has a weight of 2300 lb and a center of
gravity at G. If it rests on the trailer at the smooth contact A
and can be considered pinned at B, determine the absolute
maximum bending stress developed in the main strut of the
trailer. Consider the strut to be a box-beam having the
dimensions shown and pinned at C.
SEA SPRITE
A
B
G
[1 ft
C
3 ft
5 ft
-4 ft-
1 ft
1.75 in.
3 in.
1.75 in
1.5 in.
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
