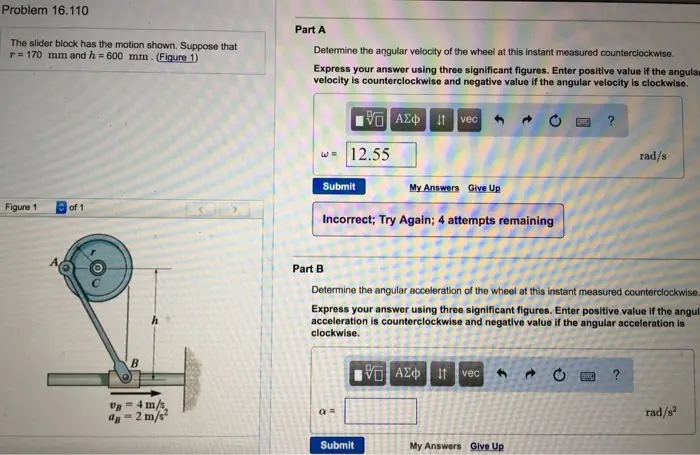

Transcribed Image Text:
Problem 16.110
The slider block has the motion shown. Suppose that
r 170 mm and h=600 mm. (Figure 1)
Part A
Determine the angular velocity of the wheel at this instant measured counterclockwise.
Express your answer using three significant figures. Enter positive value if the angulam
velocity is counterclockwise and negative value if the angular velocity is clockwise.
Figure 1
of 1
B
vB-4 m/s,
a-2 m/s²
AΣt vec
12.55
Submit
My Answers Give Up
Incorrect; Try Again; 4 attempts remaining
?
rad/s
Part B
Determine the angular acceleration of the wheel at this instant measured counterclockwise...
Express your answer using three significant figures. Enter positive value if the anguli
acceleration is counterclockwise and negative value if the angular acceleration is
clockwise.
ΜΕ ΑΣΦ 11 vec
Submit
My Answers Give Up
?
rad/s²
