السؤال
Transcribed Image Text:

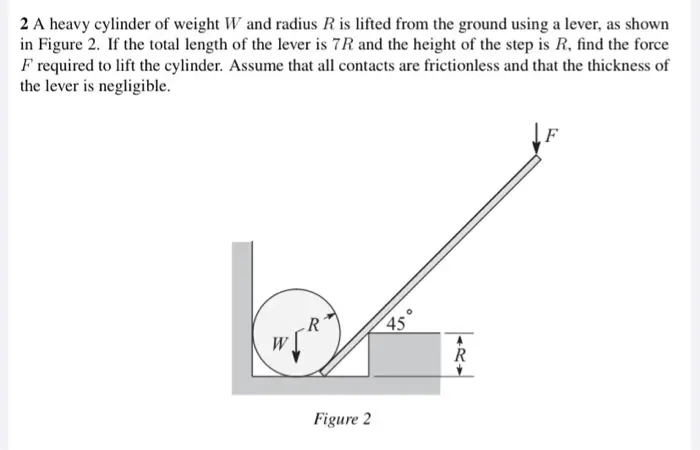

2 A heavy cylinder of weight W and radius R is lifted from the ground using a lever, as shown
in Figure 2. If the total length of the lever is 7R and the height of the step is R, find the force
F required to lift the cylinder. Assume that all contacts are frictionless and that the thickness of
the lever is negligible.
Figure 2
45
F
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
