السؤال
Transcribed Image Text:

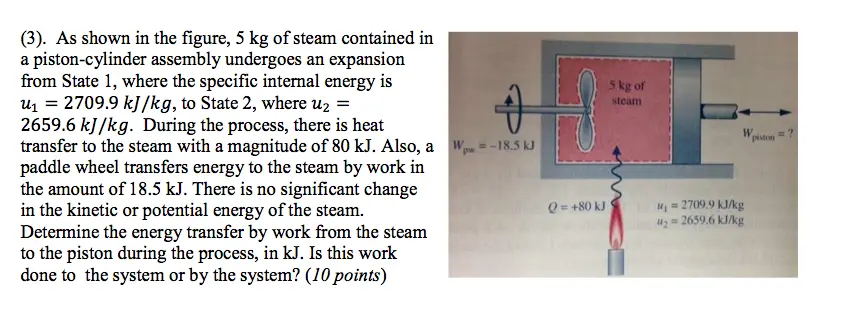

(3). As shown in the figure, 5 kg of steam contained in
à piston-cylinder assembly undergoes an expansion
from State 1, where the specific internal energy is
u₁ = 2709.9 kJ/kg, to State 2, where u₂ =
2659.6 kJ/kg. During the process, there is heat
pw
transfer to the steam with a magnitude of 80 kJ. Also, a Wp =-18.5 kJ
paddle wheel transfers energy to the steam by work in
the amount of 18.5 kJ. There is no significant change
in the kinetic or potential energy of the steam.
Determine the energy transfer by work from the steam
to the piston during the process, in kJ. Is this work
done to the system or by the system? (10 points)
Q=+80 kJ
5 kg of
steam
u₁ = 2709.9 kJ/kg
=2659.6 kJ/kg
W
Vpiston
=?
check_circle الجواب — حل مفصل خطوة بخطوة
hourglass_top
🔒
الحل الكامل متاح للمشتركين
اشترك في أرشيف الأسئلة لعرض هذا الحل وآلاف الحلول المفصلة خطوة بخطوة من معلمين معتمدين.
