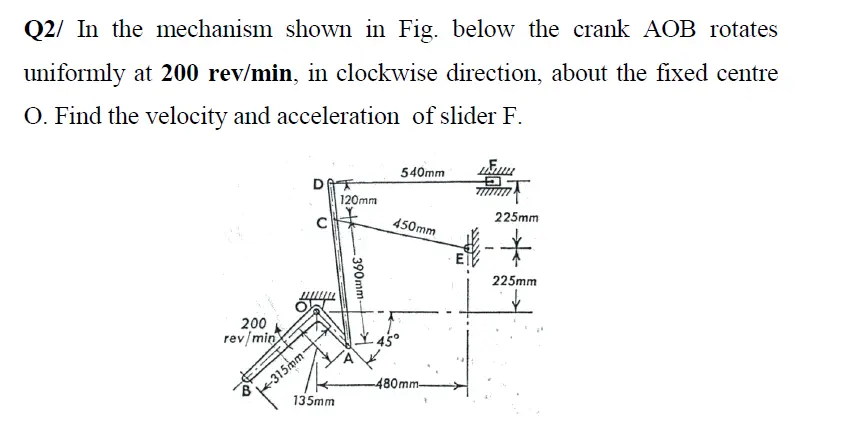

Q2/ In the mechanism shown in Fig. below the crank AOB rotates uniformly at 200 rev/min, in clockwise direction, about the fixed centre O. Find the velocity and acceleration of slider F. 200 rev/min 540mm DAT 120mm -315mm- -390mm- 450mm 135mm 480mm- 225mm ΕΙ 225mm
