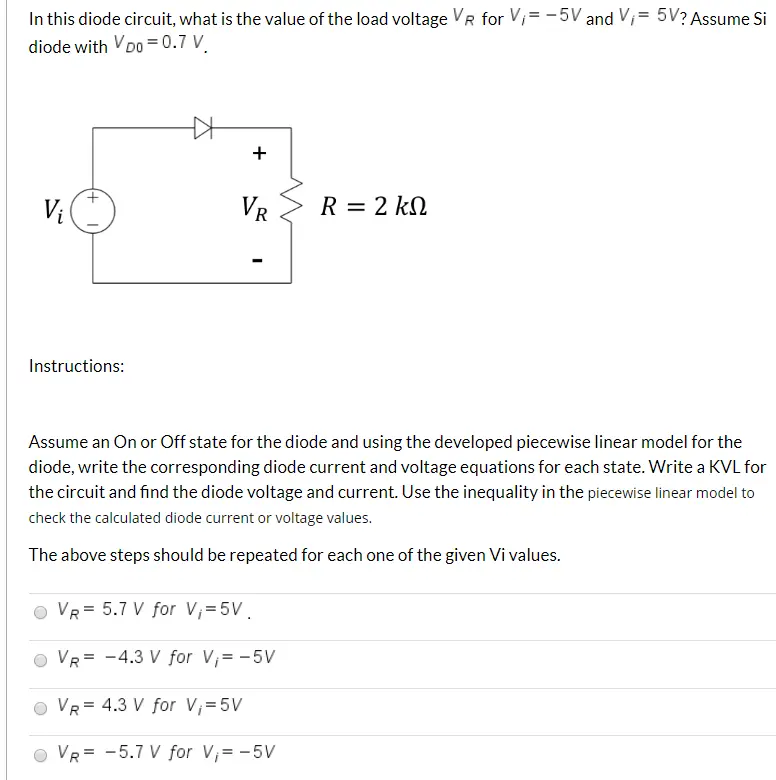

In this diode circuit, what is the value of the load voltage VR for V=-5V and V = 5V? Assume Si diode with Voo=0.7 V + Vi VR R = 2 kQ Instructions: - Assume an On or Off state for the diode and using the developed piecewise linear model for the diode, write the corresponding diode current and voltage equations for each state. Write a KVL for the circuit and find the diode voltage and current. Use the inequality in the piecewise linear model to check the calculated diode current or voltage values. The above steps should be repeated for each one of the given Vi values. VR 5.7 V for V;=5V. O VR-4.3 V for V₁ = -5V VR 4.3 V for V,=5V VR -5.7 V for V; = -5V
