السؤال
Transcribed Image Text:
Question 3
G8($)
R(s)
G1(s)
G5(s)
G6(s)
G2(s)
G4(s)
G7(5)
|G3(5)
C(3)
Figure Q3

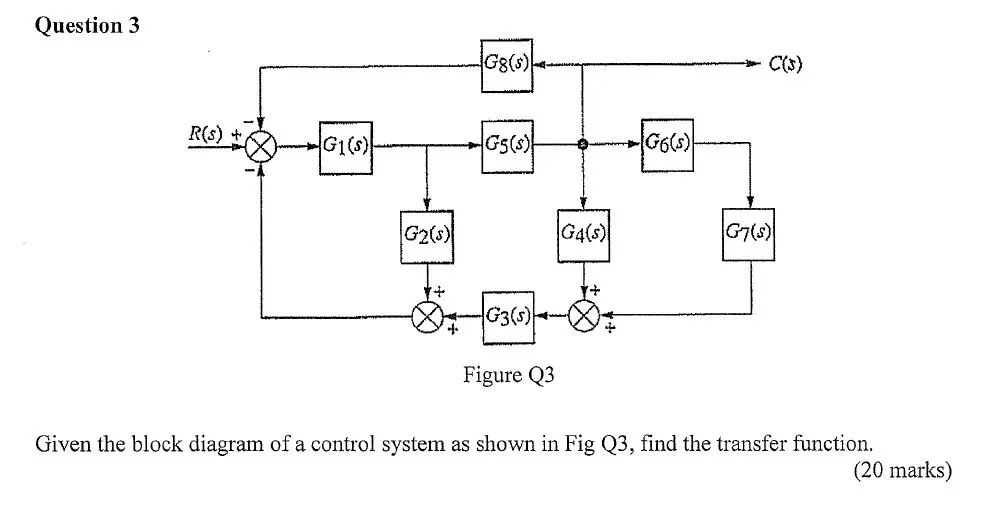

Given the block diagram of a control system as shown in Fig Q3, find the transfer function.
(20 marks)
