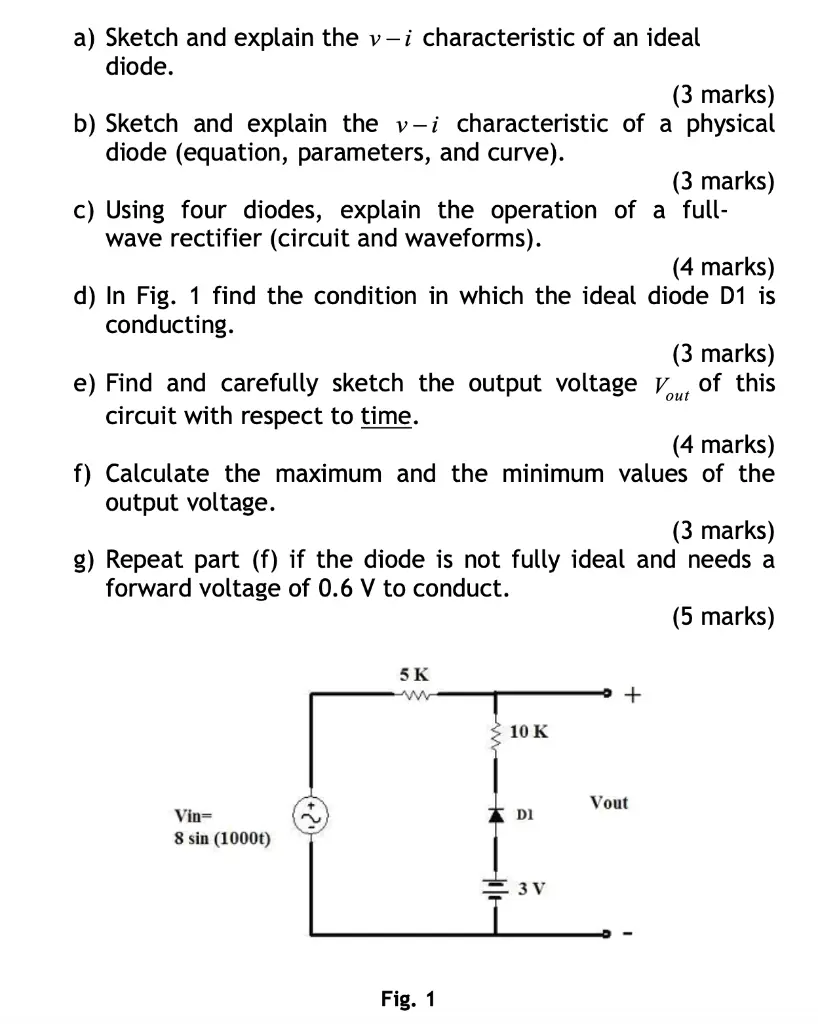

a) Sketch and explain the v-i characteristic of an ideal diode. (3 marks) b) Sketch and explain the v-i characteristic of a physical diode (equation, parameters, and curve). (3 marks) c) Using four diodes, explain the operation of a full- wave rectifier (circuit and waveforms). (4 marks) d) In Fig. 1 find the condition in which the ideal diode D1 is conducting. e) Find and carefully sketch the output voltage V circuit with respect to time. out (3 marks) of this (4 marks) f) Calculate the maximum and the minimum values of the output voltage. (3 marks) g) Repeat part (f) if the diode is not fully ideal and needs a forward voltage of 0.6 V to conduct. Vin- 8 sin (1000t) 2+} Fig. 1 5K ww 10 K Dl 3 V Vout + (5 marks)
