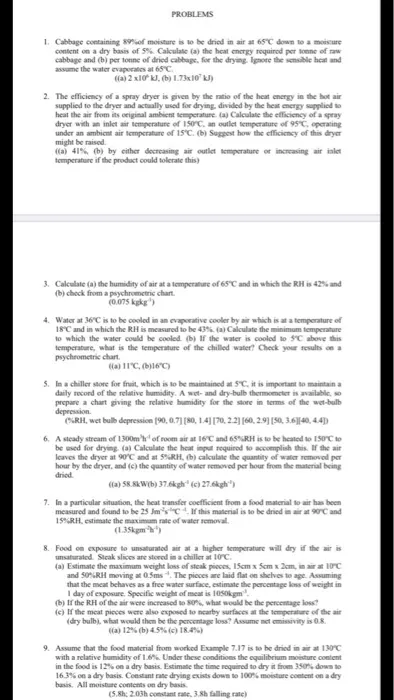

PROBLEMS 1. Cabbage containing 89% of moisture is to be dried in air at 65°C down to a moisture content on a dry basis of 5% Calculate (a) the heat energy required per tonne of raw cabbage and (b) per tonne of dried cabbage, for the drying. Ignore the sensible heat and assume the water evaporates at 65°C. ((a) 2 x10 kJ, (b) 1.73x10 kJ) 2. The efficiency of a spray dryer is given by the ratio of the heat energy in the hot air supplied to the dryer and actually used for drying, divided by the heat energy supplied to heat the air from its original ambient temperature. (a) Calculate the efficiency of a spray dryer with an inlet air temperature of 150°C, an outlet temperature of 95°C, operating under an ambient air temperature of 15°C. (b) Suggest how the efficiency of this dryer might be raised. ((a) 41 %, (b) by either decreasing air outlet temperature or increasing air inlet temperature if the product could tolerate this) 3. Calculate (a) the humidity of air at a temperature of 65°C and in which the RH is 42% and (b) check from a psychrometric chart. (0.075 kgkg) 4. Water at 36°C is to be cooled in an evaporative cooler by air which is at a temperature of 18°C and in which the RH is measured to be 43% (a) Calculate the minimum temperature to which the water could be cooled. (b) If the water is cooled to 5°C above this temperature, what is the temperature of the chilled water? Check your results on a psychrometric chart. ((a) 11°C, (b)16°C) 5. In a chiller store for fruit, which is to be maintained at 5°C, it is important to maintain a daily record of the relative humidity. A wet- and dry-bulb thermometer is available, so prepare a chart giving the relative humidity for the store in terms of the wet-bulb depression. (%RH, wet bulb depression [90, 0.7][80, 1.4] [70, 2.2] [60, 2.9] [30, 3.6][40, 4.4]) 6. A steady stream of 1300m'h' of room air at 16°C and 65%RH is to be heated to 150°C to be used for drying. (a) Calculate the heat input required to accomplish this. If the air leaves the dryer at 90°C and at 5%RH, (b) calculate the quantity of water removed per hour by the dryer, and (c) the quantity of water removed per hour from the material being dried. ((a) 58.8kW(b) 37.6kgh" (c) 27.6kgh") 7. In a particular situation, the heat transfer coefficient from a food material to air has been measured and found to be 25 Jms C. If this material is to be dried in air at 90°C and 15%RH, estimate the maximum rate of water removal. (1.35kgm) 8. Food on exposure to unsaturated air at a higher temperature will dry if the air is unsaturated. Steak slices are stored in a chiller at 10°C. (a) Estimate the maximum weight loss of steak pieces, 15cm x 5cm x 2cm, in air at 10°C and 50%RH moving at 0.5ms. The pieces are laid flat on shelves to age. Assuming that the meat behaves as a free water surface, estimate the percentage loss of weight in 1 day of exposure. Specific weight of meat is 1050kgm (b) If the RH of the air were increased to 80%, what would be the percentage loss? (c) If the meat pieces were also exposed to nearby surfaces at the temperature of the air (dry bulb), what would then be the percentage loss? Assume net emissivity is 0.8. ((a) 12% (b) 4.5% (c) 18.4%) 9. Assume that the food material from worked Example 7.17 is to be dried in air at 130°C with a relative humidity of 1.6%. Under these conditions the equilibrium moisture content in the food is 12% on a dry basis. Estimate the time required to dry it from 350% down to 16.3% on a dry basis. Constant rate drying exists down to 100% moisture content on a dry basis. All moisture contents on dry basis. (5.8h; 2.03h constant rate, 3.8h falling rate)
