السؤال
Transcribed Image Text:

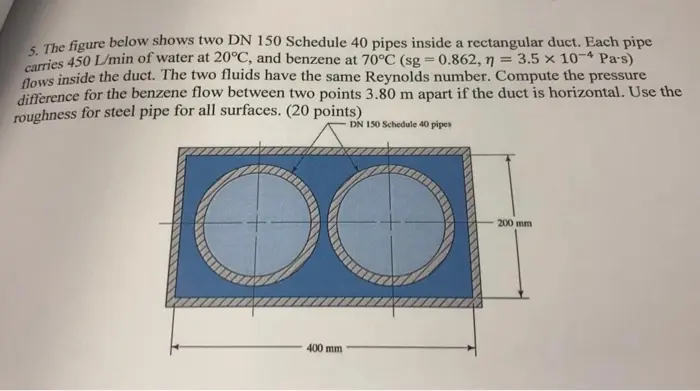

5. The figure below shows two DN 150 Schedule 40 pipes inside a rectangular duct. Each pipe
carries 450 L/min of water at 20°C, and benzene at 70°C (sg = 0.862, n = 3.5 × 10-4 Pas)
flows inside the duct. The two fluids have the same Reynolds number. Compute the pressure
difference for the benzene flow between two points 3.80 m apart if the duct is horizontal. Use the
roughness for steel pipe for all surfaces. (20 points)
DN 150 Schedule 40 pipes
400 mm
+
200 mm
