السؤال

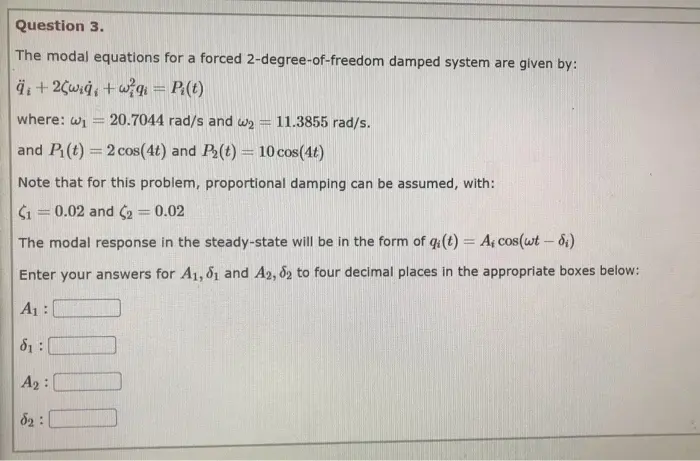

Transcribed Image Text:
Question 3.
The modal equations for a forced 2-degree-of-freedom damped system are given by:
äi+2(wiġ+wq = P(t)
where: wi 20.7044 rad/s and w
11.3855 rad/s.
and Pi(t)=2 cos(4t) and P2(t) = 10 cos(4t)
Note that for this problem, proportional damping can be assumed, with:
$10.02 and 2 = 0.02
The modal response in the steady-state will be in the form of qi(t) = A, cos(wt - di)
Enter your answers for A1, 51 and A2, 62 to four decimal places in the appropriate boxes below:
A1:
61:
A2:
62:
